Schematic diagram of waterproof electronic control box
/
/
Waterproof electronic control boxes are mainly used in fixed working environments. In order to ensure that the internal electronic components can work normally in harsh environments. For this special requirement, we designed an all-aluminum waterproof electronic housing with heat dissipation function.
The product adopts an open structure design, which is extremely convenient to assemble. The shell is integrally formed by die extrusion, and the upper and lower cover plates are made of aluminum plate through CNC processing (plastic material can also be selected).
/
/
product introduction
Made of all aluminum material. Environmental protection, with excellent heat dissipation function;
Surface sandblasting + anodic oxidation treatment, super metal texture;

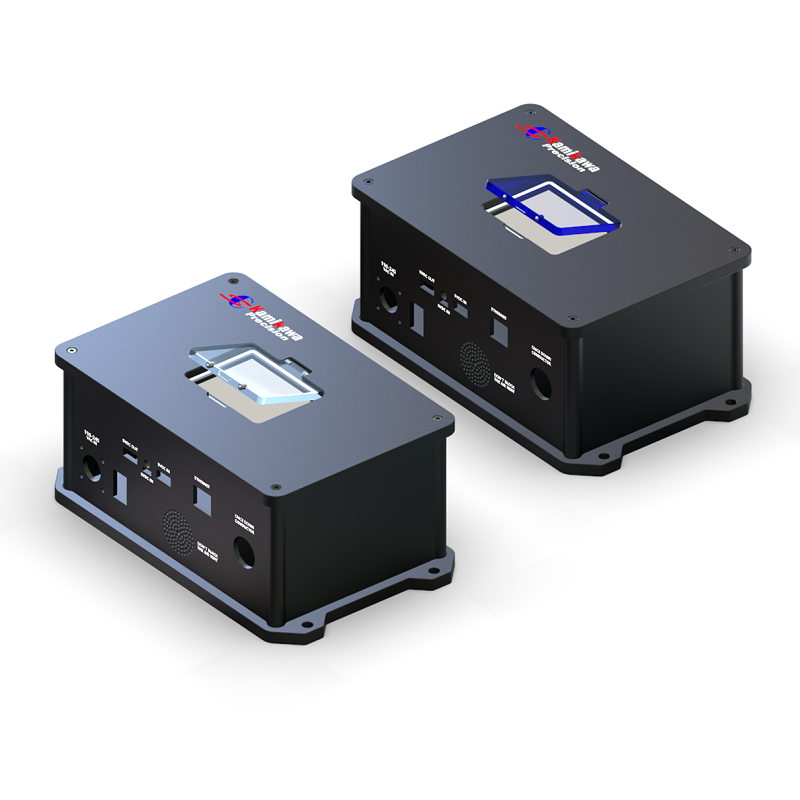

The touch screen has a protective cover, which can effectively prevent rainwater invasion;
The upper and lower covers are equipped with hidden waterproof sealing rubber rings, and the protection level can reach IP68;
It is fixed with all stainless steel 304 screws and will never rust;
Full-color LOGO can be matched with any pattern to make your product more outstanding;
/
/
Mounting hole and PCB fixing method
All mounting holes are CNC machined. The shape and hole spacing accuracy can reach ±0.01mm;
The PCB board can be fixed on the copper stud or stainless steel stud of the bottom cover;
The touch screen can be fixed on the top cover or in any other direction. If you don't know how to fix it, we can help you design a fixing method;
The protective cover of the touch screen is equipped with a spring buckle, and the switch is extremely convenient;
/
/
About product color
The appearance color is optional, you only need to provide us with the standard Pantone color card number;
Standard colors are matte black and silver white;
The protective cover can choose transparent color or purple;
LOGO color can be selected from silk screen printing, laser engraving or UV color printing;
/
/
product specification

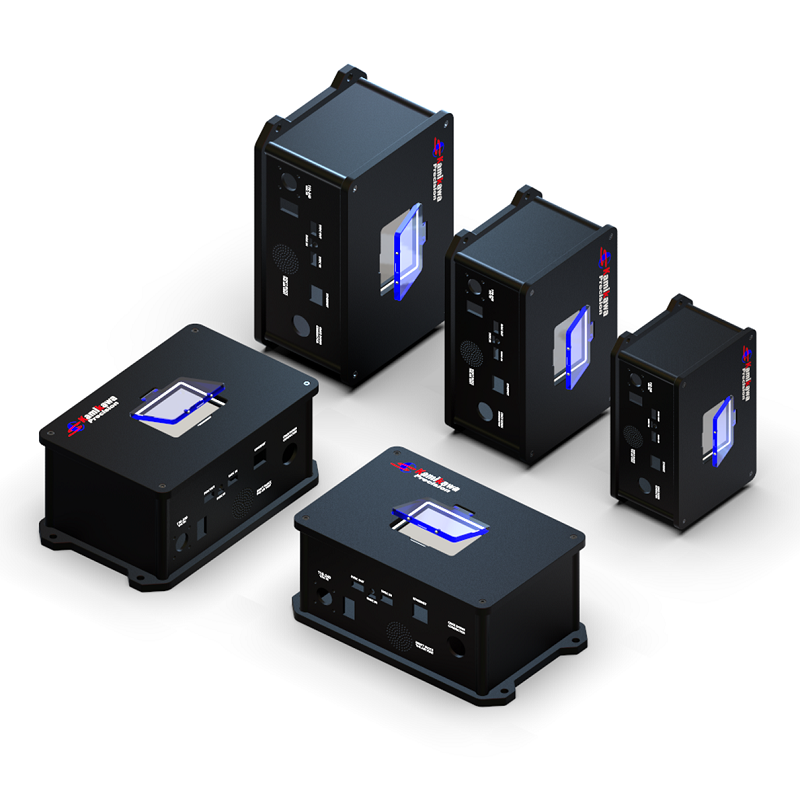

This product has many specifications. Length, width and height can be customized to any size;
The standard size of the shell wall thickness is 2.5mm, and any thickness can be customized;
The upper and lower cover plates can be customized in any material (or plastic), thickness and shape (standard material aluminum 6061);
The standard material of the protective cover is transparent POM (color and thickness are optional);
Extended range studs are used to fix the PCB board (material options: aluminum, brass, stainless steel);

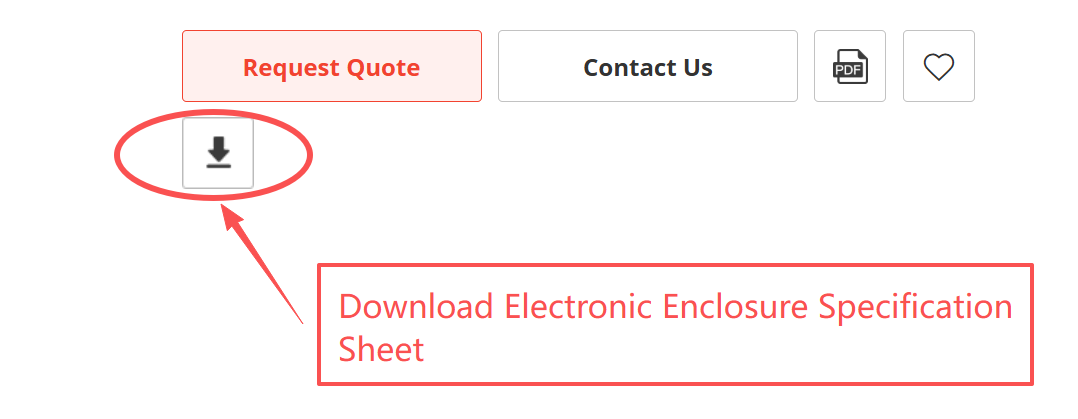

For the specific size, you can download the specifications for free;
/
/
/
/
IP68 protection definition
According to the standard formulated by IEC60529 (International Electrotechnical Commission), IP stands for protection level.
Common protection levels are IP65, IP66, IP67, IP68. The higher the number, the higher the protection ability.
Silicone bold waterproof sealing strip is adopted;
Waterproof, dustproof, oil resistant, high temperature resistant;
Hidden design of waterproof strip, easy to install, super waterproof effect;
/
/
/
/
Product application
environmental monitoring.
Rail transit;
Digital communications.
vehicle terminal;
Power Battery.
ocean monitoring;
instrumentation.
electronic control;
/
/

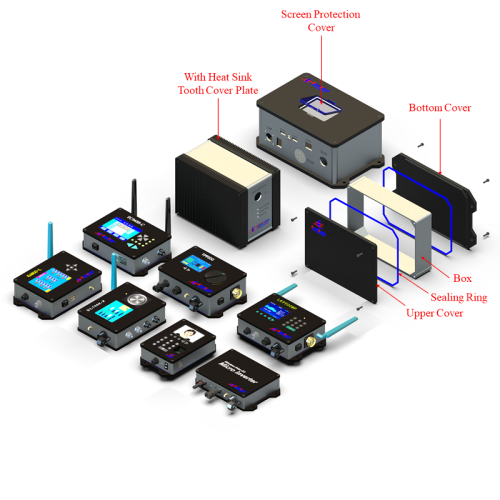

Waterproof electronic control box structure diagram

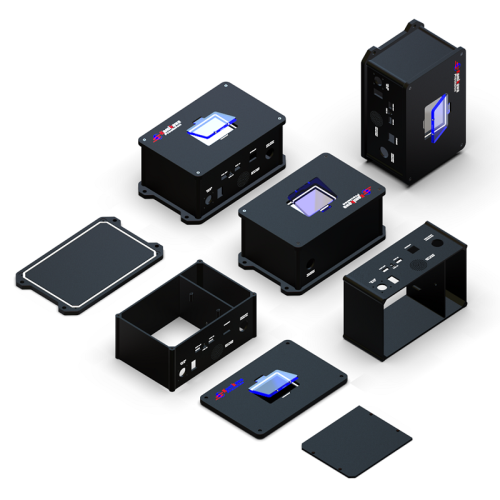

Adopt open design, easy to install internal components;
The box body is extruded by a mold, which is strong and durable;
The upper cover and the lower cover are processed by CNC, and the dimensional accuracy is super high;
Hidden bold silicone sealing strip, super waterproof effect;
The surface of the product has been sandblasted and anodized, which is not only waterproof, dustproof, and UV-resistant, but also has a super heat dissipation function.
