Free Open-Source CAD Drawings For Aluminum Extrusion Enclosure
We provide open-source CAD files for hundreds of aluminum extrusion enclosure profiles. There are no extra mold charges for all standard profiles, with an MOQ of just 1 piece. Available drawing formats: STEP, STL, DXF. All CAD models are fully free for commercial use without copyright restrictions.

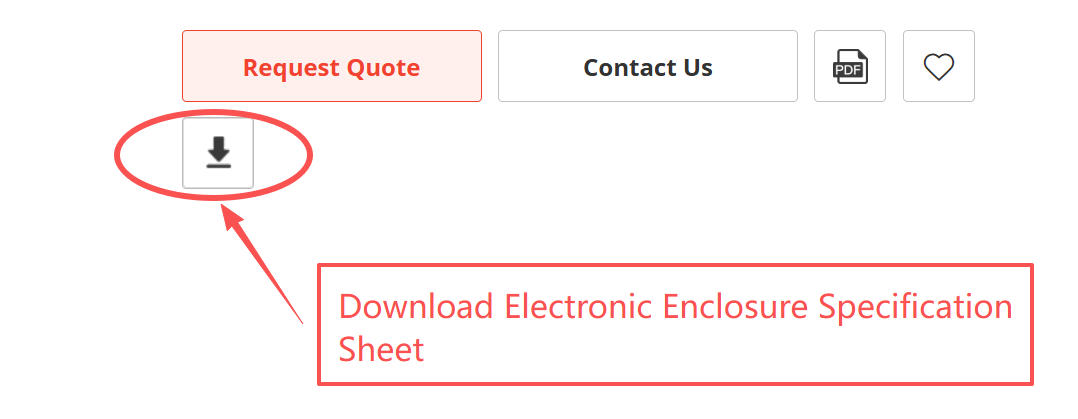

Download our product specification sheet first to find the matching profile model number that fits your PCB width and height.
Access the repository and open the 3D-Models folder for 3D files or the CAD-Drawings folder for 2D engineering drawings. Hit the Ctrl+F keyboard shortcut, input your target model number (e.g. K100), and you can instantly locate the required drawing files.
The length of all standard extrusion housings supports unlimited custom lengths. The matched standard end caps are 2.0mm thick flat aluminum plates.
You can independently design customized end cap styles and connector mounting holes. Our engineering team also supplies professional drawing design assistance upon request.
Send your finalized custom drawings to us via email, and we will issue an official quotation and deliver CNC machining service according to your designs.
If none of the standard profiles listed in the specification sheet satisfy your dimensional requirements, we also provide full custom aluminum extrusion enclosure development services.
IP is the first letter to protect. According to electrical equipment and packaging, the IP protection level system provides a certain degree of dustproof, waterproof and prevent collision.
Method of category products. The system was drafted by the IEC (International Electrician Commission) of the International Electrician Association and announced the packaging protection level (IP code) in addition to IED529 (BS EN 60529: 1992), which was also adopted as national standards in 2004.
IP protection level consists of two numbers. The first number represents the level of electrical dust prevention to prevent foreign body invasion. In order to avoid electric shocks), the second number represents the energy level of the moisture and water invasion of the electrical appliance. The larger the essence, the higher the protection
/
/
/
/
The first digit after IP is dustproof
n The first digit indicates how far the device is resistant to fine dust, or how well people are protected from hazards in a sealed environment. Represents the level of preventing the entry of solid foreign objects, the highest level is 6:
n can block objects larger than 50mm, semi-naked state.
n preventing the intrusion of solid objects larger than 12mm and preventing human fingers from touching the internal parts.
n preventing the intrusion of solid objects larger than 2.5mm, preventing the intrusion of tools, wires or similar small foreign objects with a diameter or thickness larger than 2.5mm and contacting internal parts.
n Prevent the intrusion of solid objects larger than 1.0mm, and prevent the intrusion of tools, wires or similar small foreign objects with a diameter or thickness larger than 1.0mm and contact with internal parts.
n with good dustproof effect, dust will not cause equipment damage or a lot of accumulation.
n completely dust-free, the connection port and other parts are completely sealed.
/
/
/
/
n The second digit indicates how waterproof the device is. Represents the level of water protection, the highest level is 8:
n no special protection.
n protection against water droplets. Water droplets falling vertically (such as condensation) will not cause damage.
n when tilted 15 degrees, it still prevents water droplets from immersing. When tilted from vertical to 15 degrees, dripping water will not cause damage.
n prevents immersion of sprayed water. Rainproof or prevent damage caused by the intrusion of water sprayed in a direction with an included angle of less than 60 degrees from the vertical.
/
/
/
/
/
/
IP68 protection definition
n According to the standard formulated by IEC60529 (International Electrotechnical Commission), IP stands for protection level.
n Common protection levels are IP65, IP66, IP67, IP68. The higher the number, the higher the protection ability.

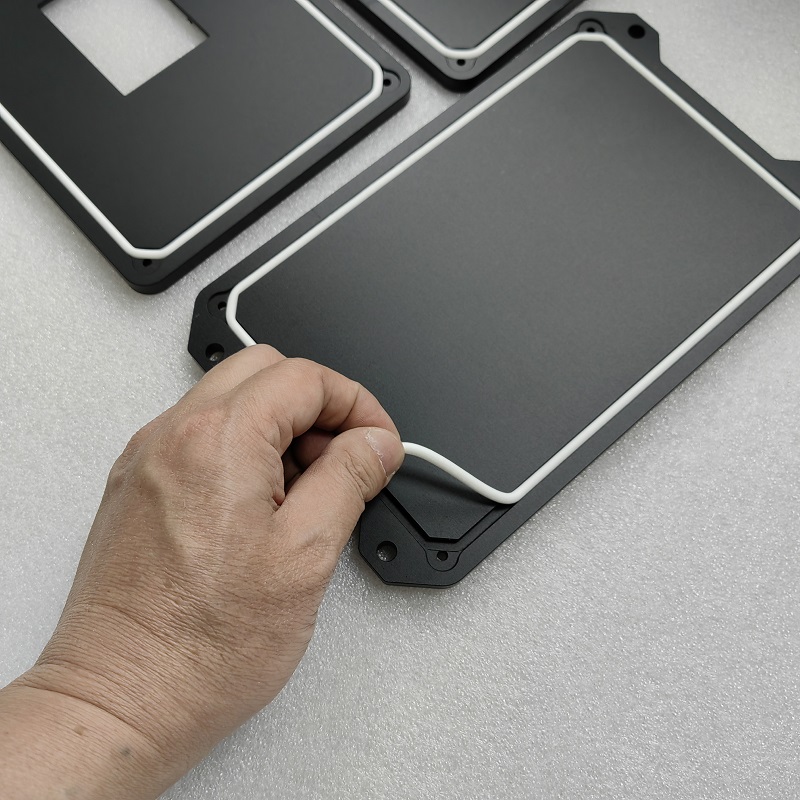

n Silicone bold waterproof sealing strip is adopted;
n Waterproof, dustproof, oil resistant, high temperature resistant;
n Hidden design of waterproof strip, easy to install, super waterproof effect;
/
/
/
/
/
/
Product application
n environmental monitoring.
n Rail transit;
n Digital communications.
n vehicle terminal;
n Power Battery.
n ocean monitoring;
n instrumentation.
n electronic control;
/
/
/
/
/
Personalized customization service
/
n Our waterproof box can be combined at will, and there are two installation modes with flange and without flange;
n Box height can be customized;
n Various mounting holes can be customized;
n Various LOGO (laser, screen printing and UV color printing LOGO) can be customized;
/
/
/
/
/

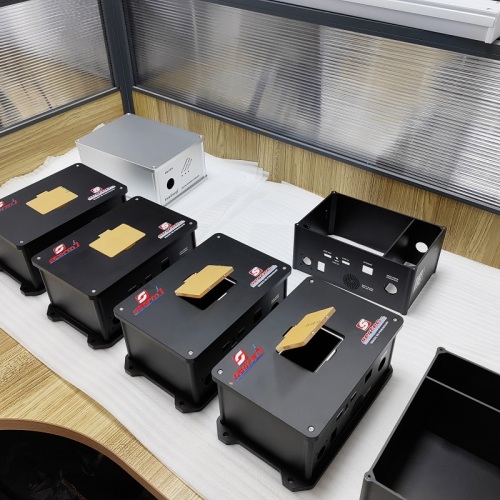

Waterproof box structure
/
n Adopt open design, easy to install internal components;
n The box body is extruded by a mold, which is strong and durable;
n The upper cover and the lower cover are processed by CNC, and the dimensional accuracy is super high;

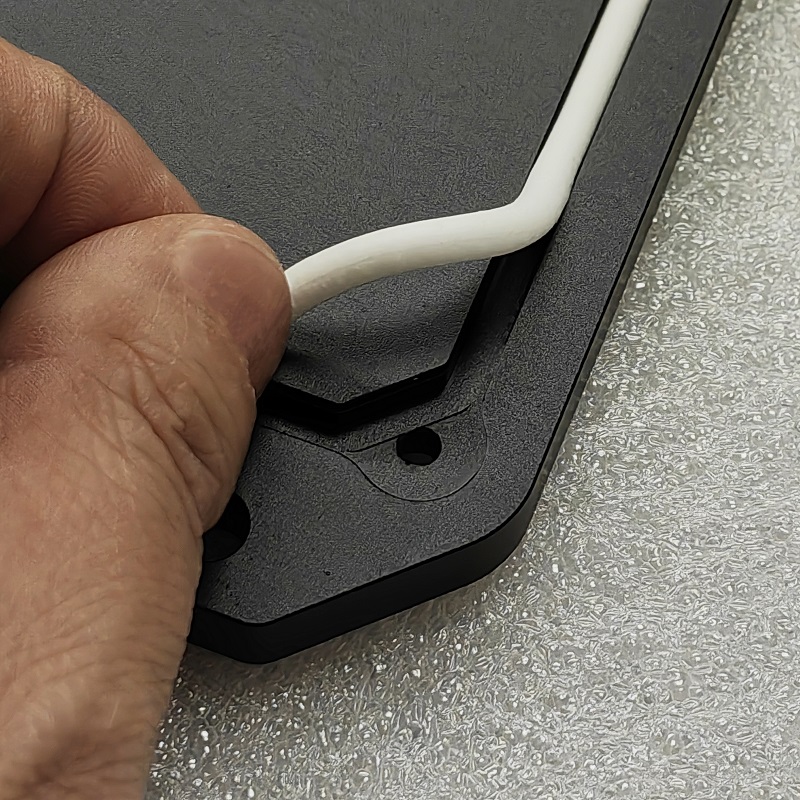

n Hidden bold silicone sealing strip, super waterproof effect;
n The surface of the product has been sandblasted and anodized, which is not only waterproof, dustproof, and UV-resistant, but also has a super heat dissipation function.
Company Profile
n Kamikawa Precision was established in 2012. We have a professional design team and more than 150 excellent manufacturing engineers;
n The company has more than 100 sets of advanced CNC Machining equipment; it can process copper, iron, aluminum, stainless steel and engineering plastic parts;
n We not only manufacture aluminum waterproof box, but also provide various precision parts manufacturing. Want to know more about us, please feel free to contact our sales staff.
n Weixaign Mr. General Manager of Engineering Technology Department. Work email: wx.gu@hzkamikawa.com.
