Free Open-Source CAD Drawings For Aluminum Extrusion Enclosure

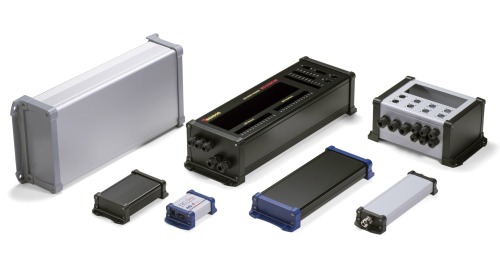

We provide open-source CAD files for hundreds of aluminum extrusion enclosure profiles. There are no extra mold charges for all standard profiles, with an MOQ of just 1 piece. Available drawing formats: STEP, STL, DXF. All CAD models are fully free for commercial use without copyright restrictions.

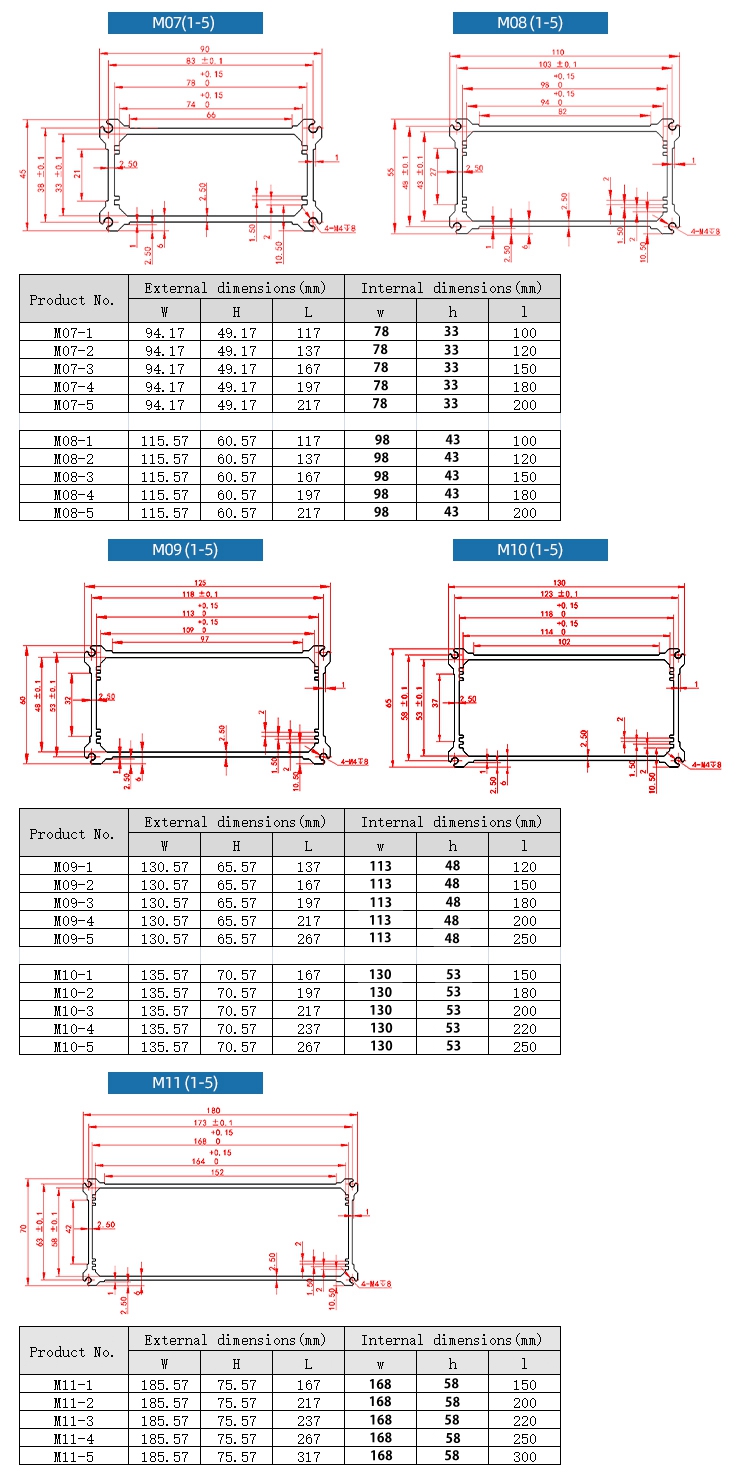

Download our product specification sheet first to find the matching profile model number that fits your PCB width and height.
Access the repository and open the 3D-Models folder for 3D files or the CAD-Drawings folder for 2D engineering drawings. Hit the Ctrl+F keyboard shortcut, input your target model number (e.g. K100), and you can instantly locate the required drawing files.
The length of all standard extrusion housings supports unlimited custom lengths. The matched standard end caps are 2.0mm thick flat aluminum plates.
You can independently design customized end cap styles and connector mounting holes. Our engineering team also supplies professional drawing design assistance upon request.
Send your finalized custom drawings to us via email, and we will issue an official quotation and deliver CNC machining service according to your designs.
If none of the standard profiles listed in the specification sheet satisfy your dimensional requirements, we also provide full custom aluminum extrusion enclosure development services.
High-voltage long-term test according to international electrical standards.
About the project box

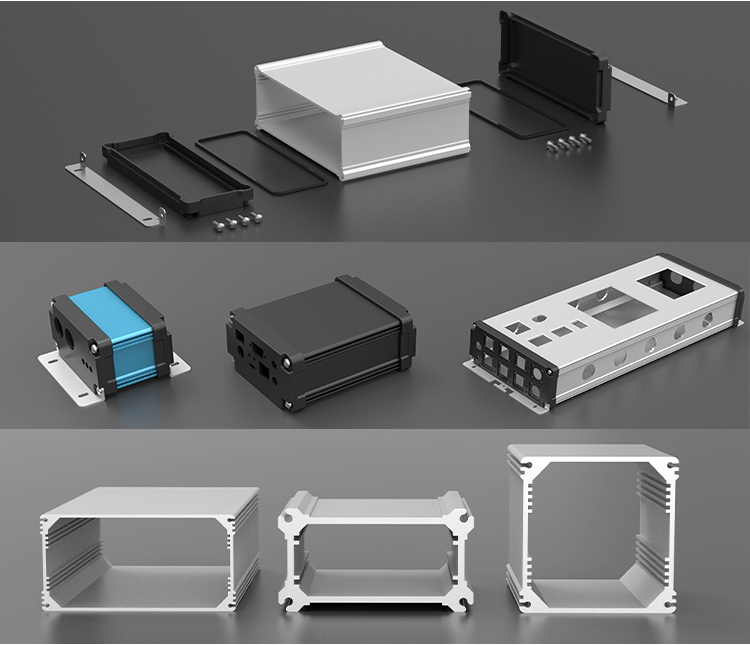

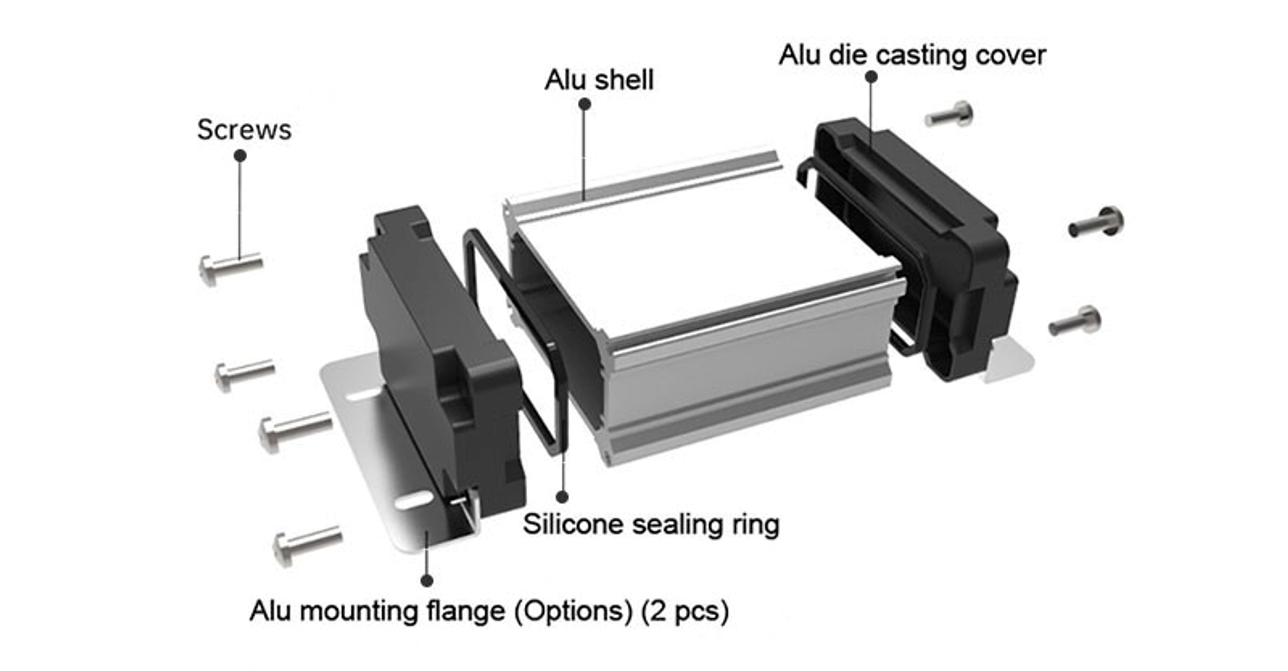

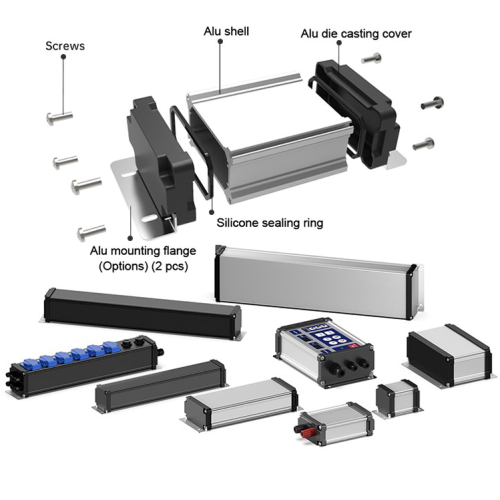

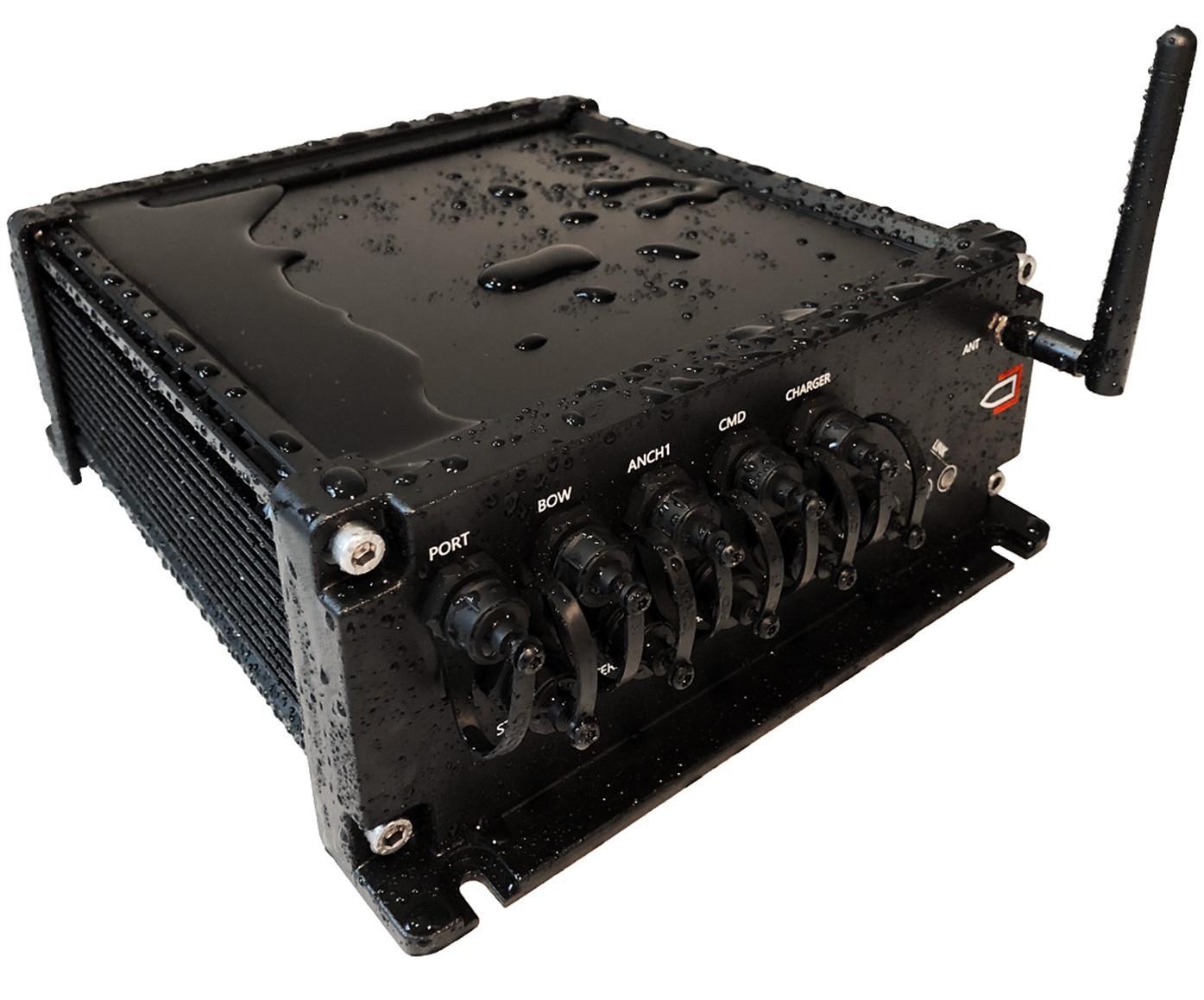

The IP68 electronic waterproof junction box manufactured by Kamikawa Precision is made of all aluminum:Covers, plain or EMC shielding sealing rings, profiled or machined enclosures,Bottom cover with mounting holes, screws for fastening

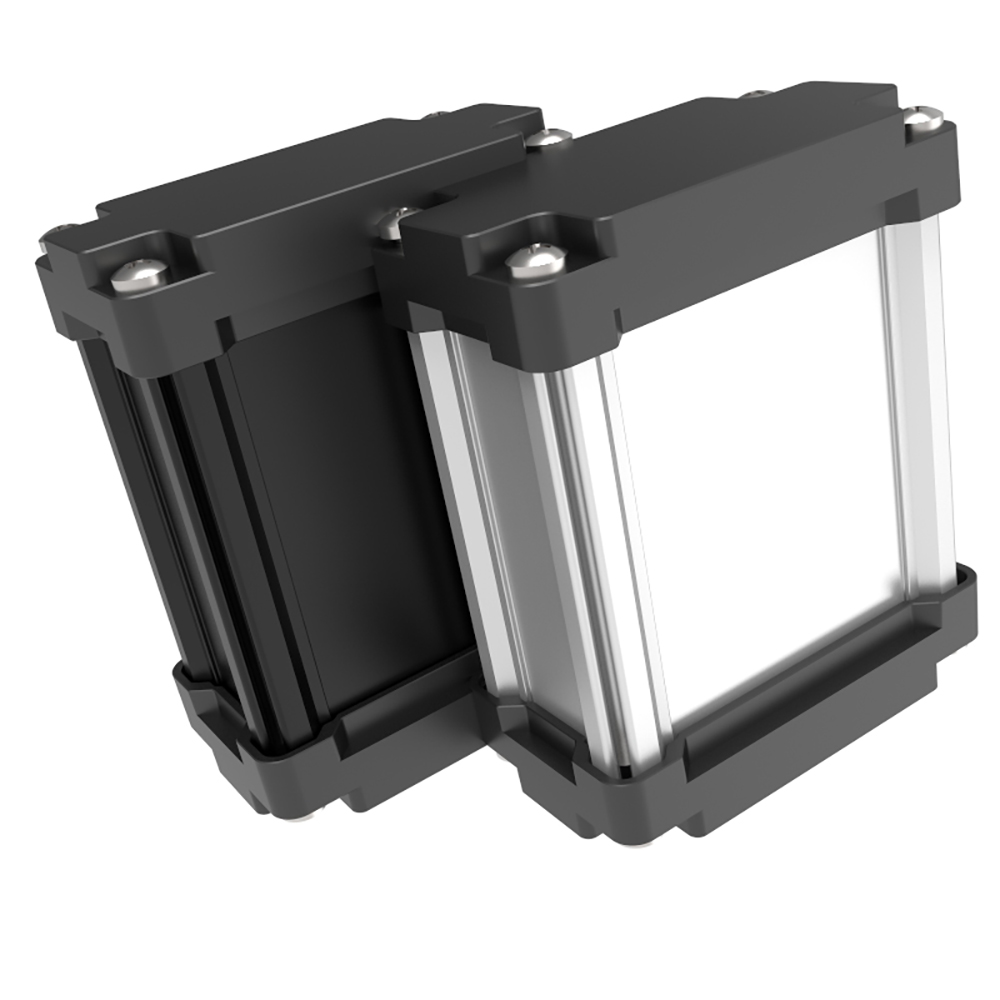

●Extruded aluminum frame and die-cast aluminum panel make it ideal for use in harsh environments where waterproofing and heat dissipation are critical.

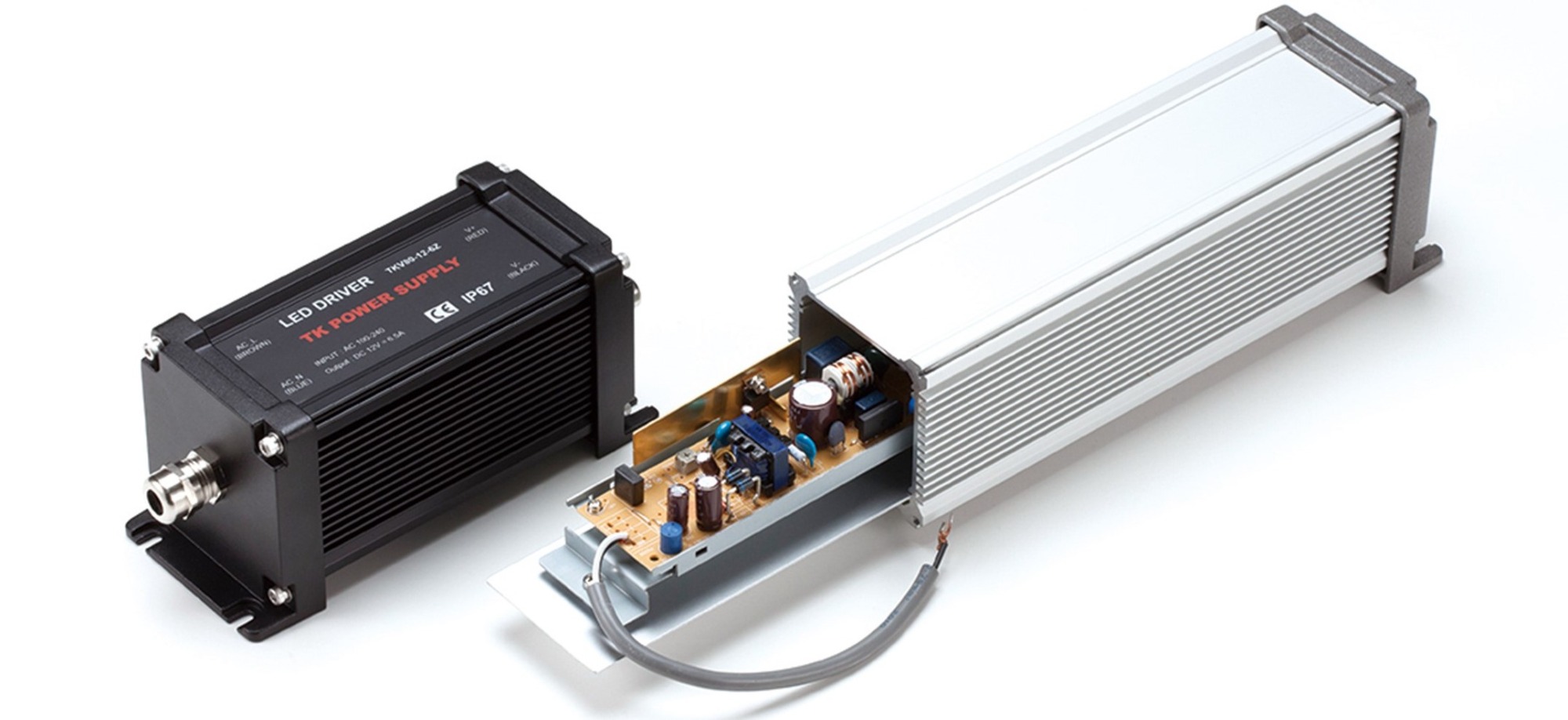

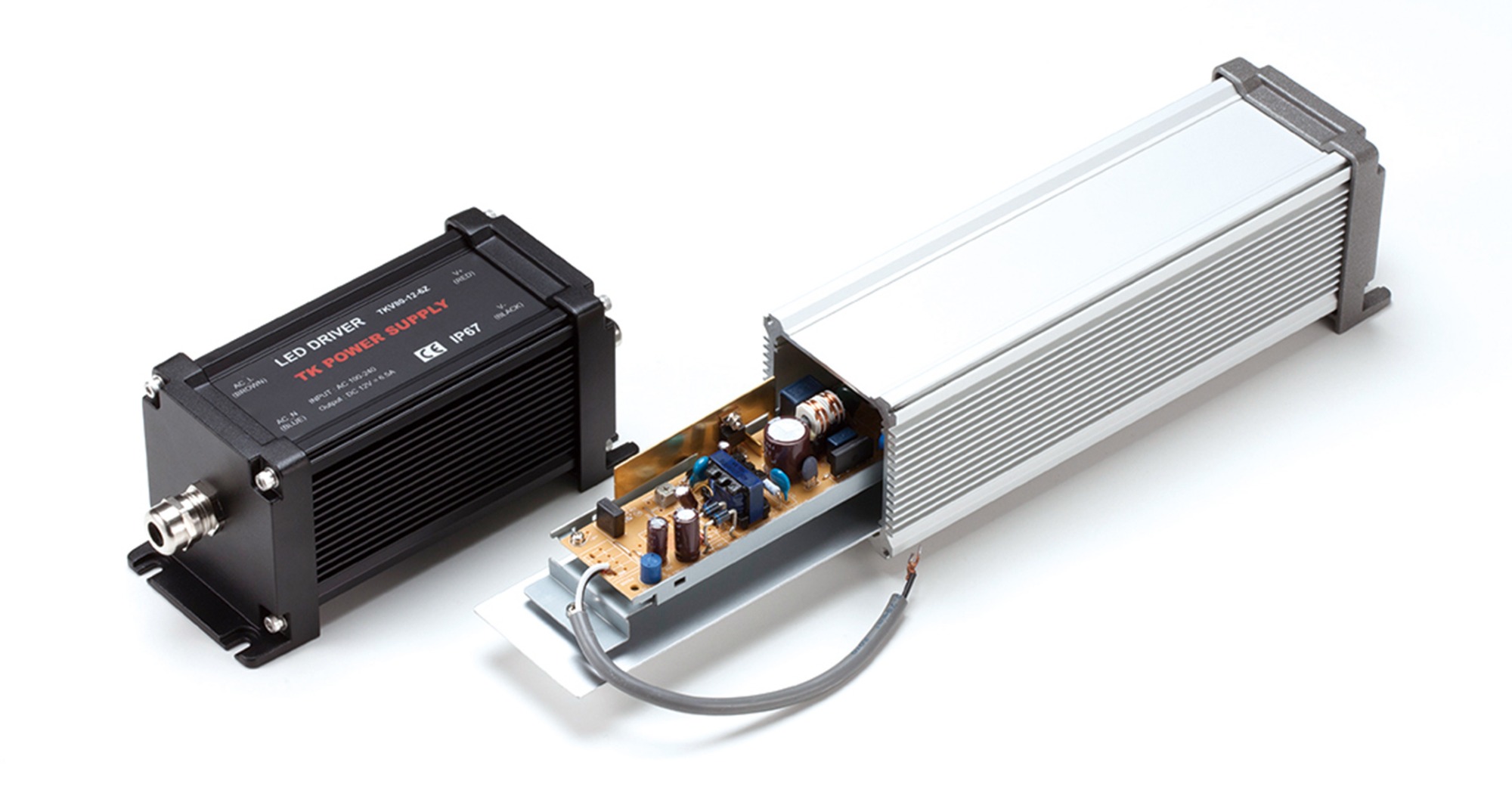

●PCB or chassis can be slid horizontally into the body frame with inner slot for installation.

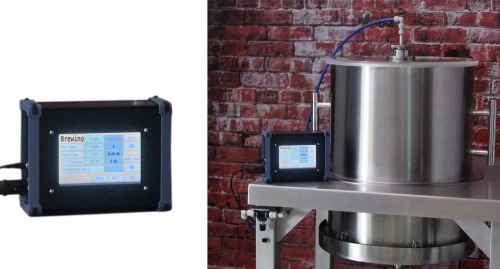

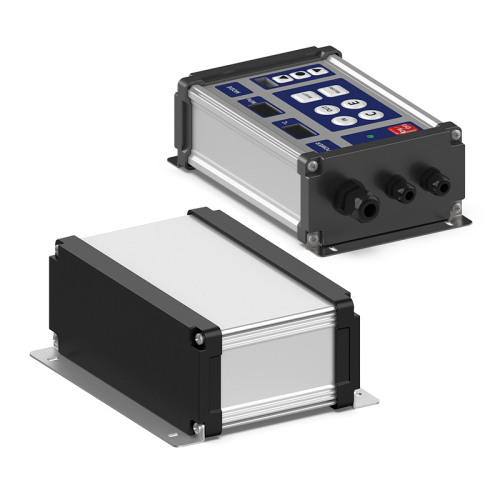

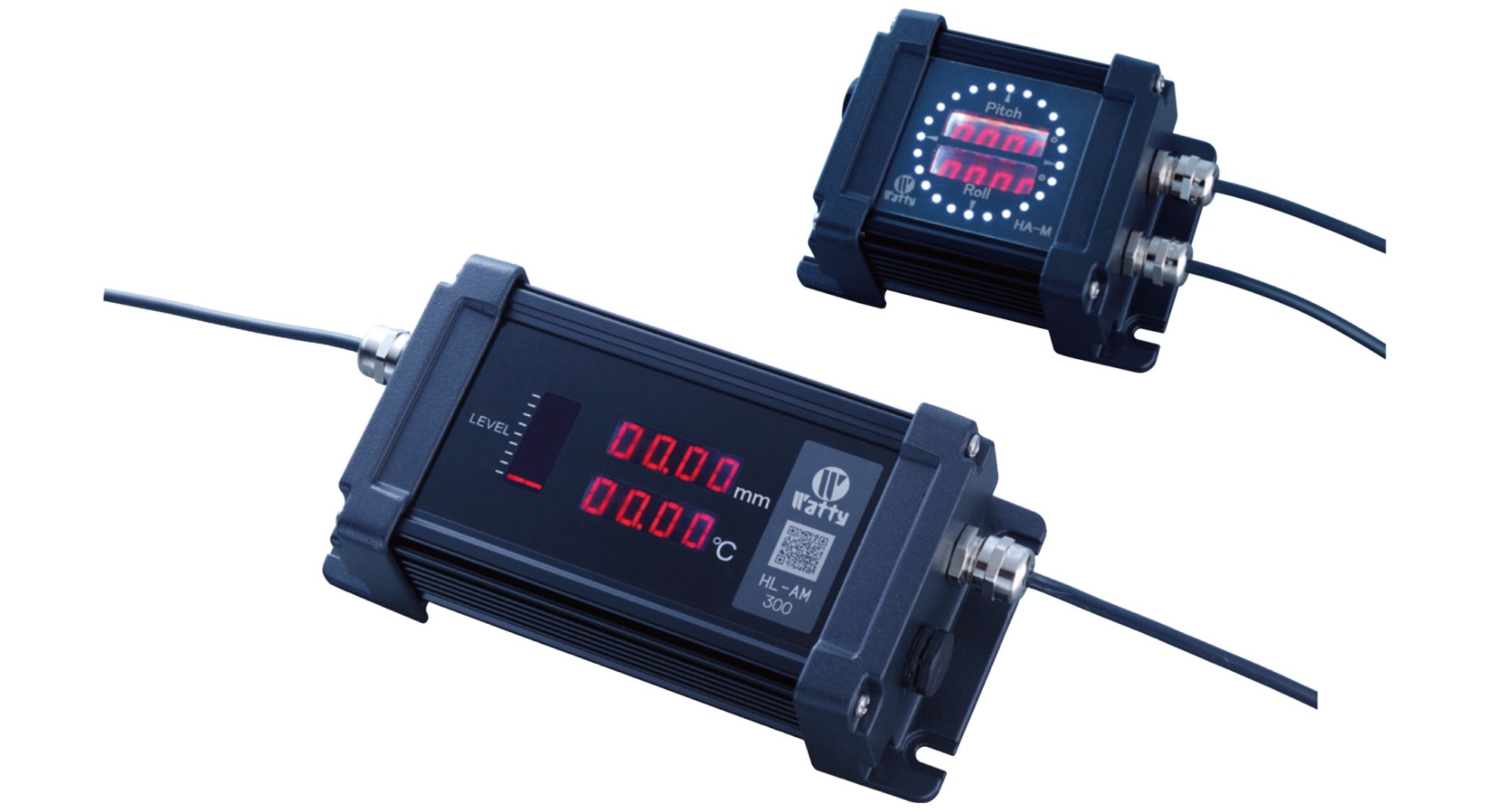

●Suitable for measuring instruments, industrial control boxes, industrial camera casings, etc.

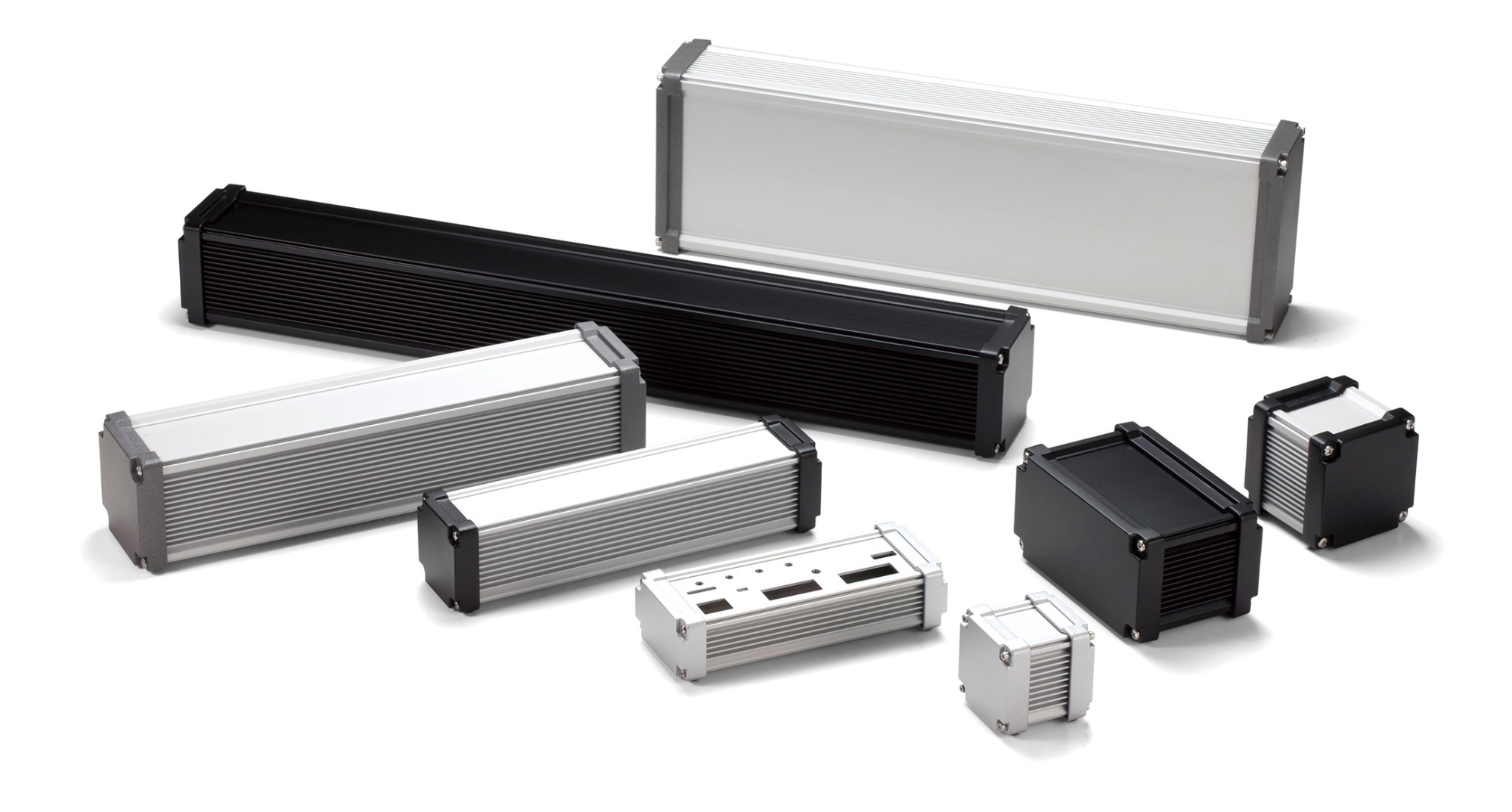

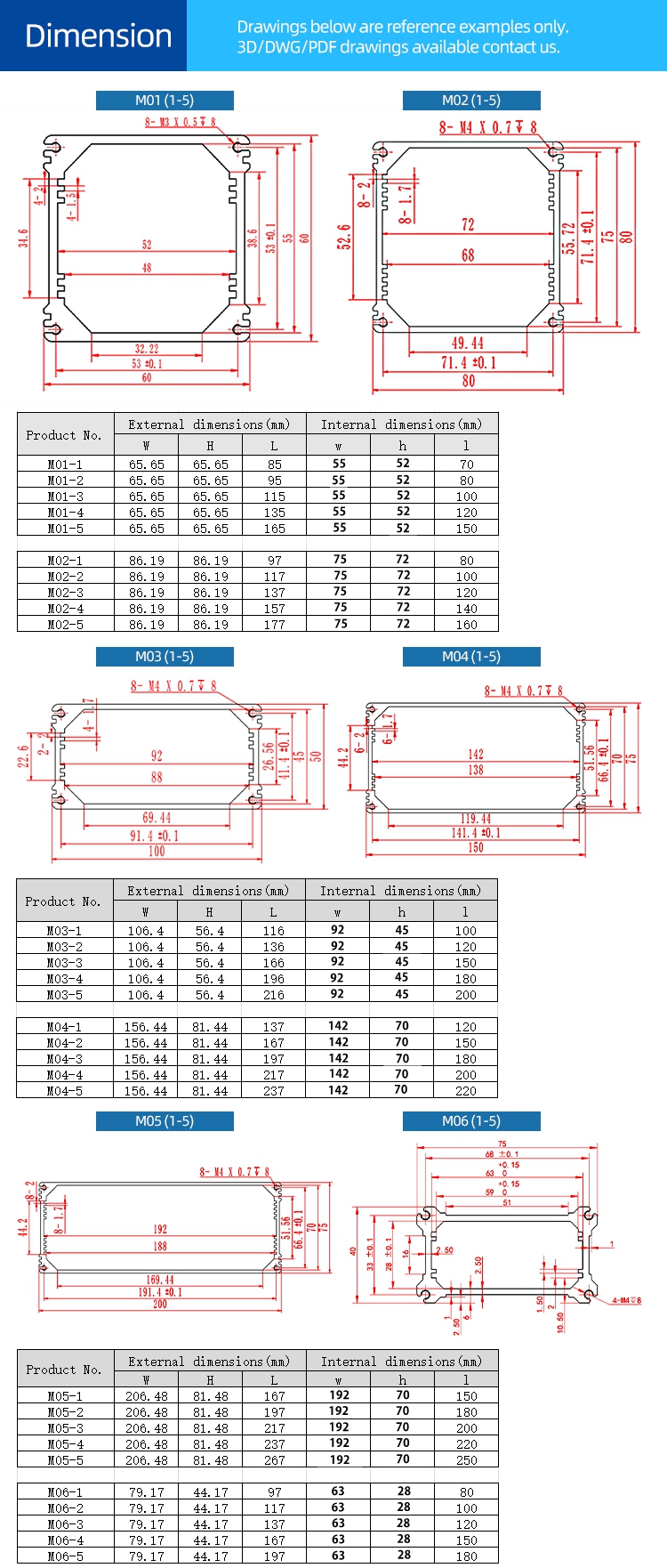

Kamikawa Precision has added 10 sizes in stock for you to choose from, from the smallest : 75mm*40 to the largest : 200mm*75mm. If you need a smaller or larger size, Kamikawa Precision can provide you with customization.
Customized box height, color, hole position Customized height: The middle part of the IP68 electronic waterproof junction box is made of aluminum extrusion, and the height can be customized according to needsKamikawa customizes hole positions, sizes and styles according to your drawings or needs
Any processing port
Send your port sketch + we will process it = your exclusive junction box
The surface of the junction box can be made into any color after anodizing. Support polishing, wire drawing, sandblasting, silk screen printing, laser marking
Aluminum can be customized to any color you want after anodizing, here are some examples of classic colors:The metallic material enclosure provides a practical benefit of protecting circuit stability, namely high-quality RF shielding（EMC）.
Kamikawa Precision's IP66 aluminum junction boxes provide waterproof protection, providing the highest possible protection for electronic circuits.

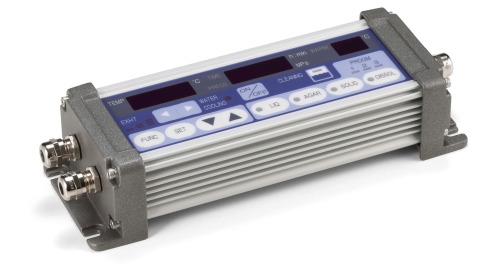

Robust aluminum junction box with excellent heat dissipation and IP67・IP68 protection rating. Suitable for harsh environments such as heavy machinery, industrial plants or outdoor applications.
IP68 junction box provides complete protection. It is perfect for installation in wet areas or harsh conditions. This ip68 electronic junction box can be submerged in limited water height
●R&D design;
●Develop mold production;
●Surface treatment;
●Kamikawa Precision has an advanced CNC machining center for CNC machining of your shell with an accuracy of ±0.01mm
Customize your packaging:
Kamikawa Precision will send your goods to you by express, air, sea, etc.
The product will be wrapped in pearl cotton and bubble bags and external cartoon box packaging
