Let's learn about the manufacturing process of IP68 waterproof box
/
/
/
/
/
/
What is IP68
IP is an acronym for Ingress Protection, and the IP protection rating system provides a way to classify products by the degree of dust, water, and collision resistance of electrical equipment and packaging. This system was drafted by the International Electrotechnical Association IEC (International Electro Technical Commission) and announced in IED529 (BS EN 60529:1992) Outer Packaging Protection Class (IP code), which was also adopted as an American National Standard in 2004. The IP protection level is composed of two numbers. The first number indicates the level of the electrical appliance being dust-proof and preventing the intrusion of foreign objects. To avoid electric shock), the second number indicates the degree of airtightness of the electrical appliance against moisture and water intrusion. The larger the number, the higher the protection level.
/
/
/
/
/
What do the numbers for IP68 mean?
/
/
The first digit after IP is dustproof
The first digit indicates how far the device is resistant to fine dust, or how well people are protected from hazards in a sealed environment. Represents the level of preventing the entry of solid foreign objects, the highest level is 6:
can block objects larger than 50mm, semi-naked state.
preventing the intrusion of solid objects larger than 12mm and preventing human fingers from touching the internal parts.
preventing the intrusion of solid objects larger than 2.5mm, preventing the intrusion of tools, wires or similar small foreign objects with a diameter or thickness larger than 2.5mm and contacting internal parts.
Prevent the intrusion of solid objects larger than 1.0mm, and prevent the intrusion of tools, wires or similar small foreign objects with a diameter or thickness larger than 1.0mm and contact with internal parts.
with good dustproof effect, dust will not cause equipment damage or a lot of accumulation.
completely dust-free, the connection port and other parts are completely sealed.
The second digit after IP: waterproof rating
The second digit indicates how waterproof the device is. Represents the level of water protection, the highest level is 8:
no special protection.
protection against water droplets. Water droplets falling vertically (such as condensation) will not cause damage.
when tilted 15 degrees, it still prevents water droplets from immersing. When tilted from vertical to 15 degrees,
dripping water will not cause damage.
prevents immersion of sprayed water. Rainproof or prevent damage caused by the intrusion of water sprayed in a direction with an included angle of less than 60 degrees from the vertical.
protection against splash water immersion. Prevent damage caused by water splashing from all directions.
protected against immersion by water jets. Prevent damage caused by water intrusion from the nozzles from all directions.
protection against large waves. It can prevent damage caused by the intrusion of large waves.
prevents water immersion when immersed in water. Immersion in water for a certain period of time or water pressure below a certain standard can ensure that no damage is caused by immersion.
preventing water immersion when sinking. Submersion under specified water pressure for extended periods of time ensures no damage due to submersion.

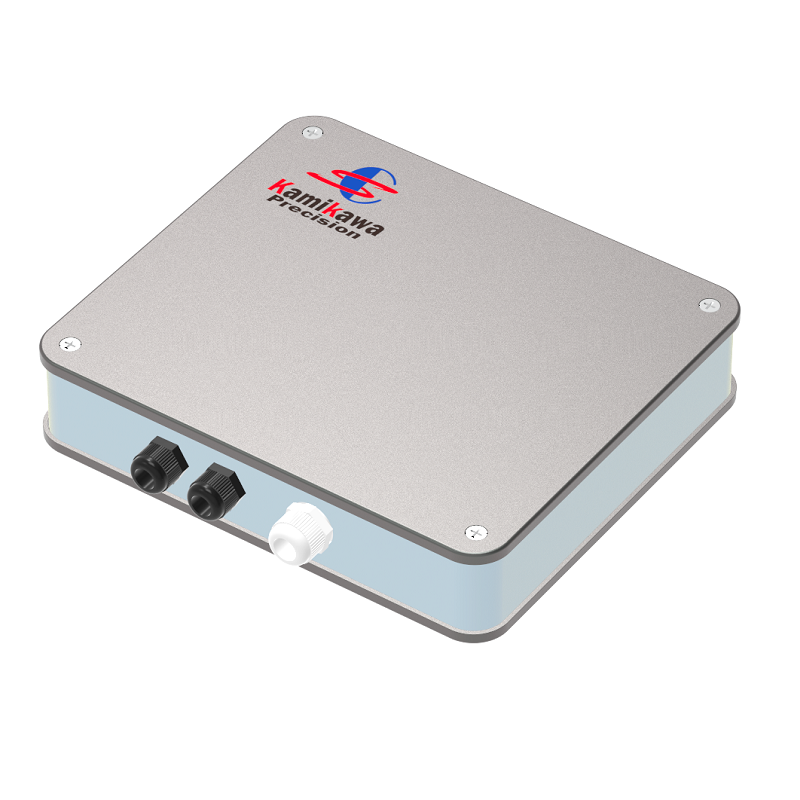

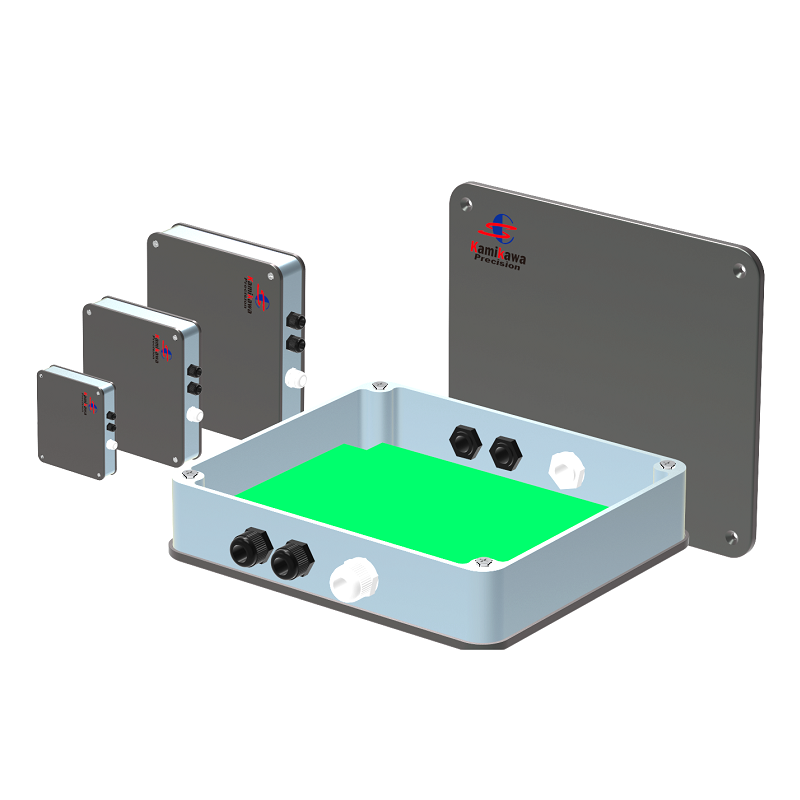

Kamikawa Precision specializes in manufacturing all kinds of waterproof junction boxes. The product adopts aluminum structure. Not only waterproof and dustproof, but also has heat dissipation function. The product structure is simple, easy to manufacture, and the cost is reasonable. Various value-added services such as window opening and color LoGo can be customized according to customer requirements.
/
/
/
/
/

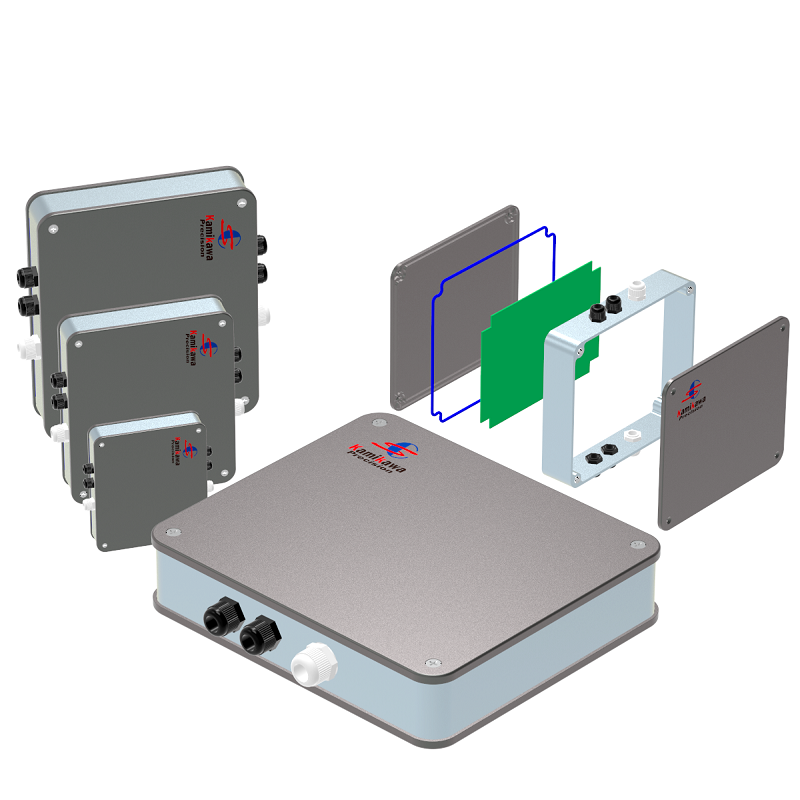

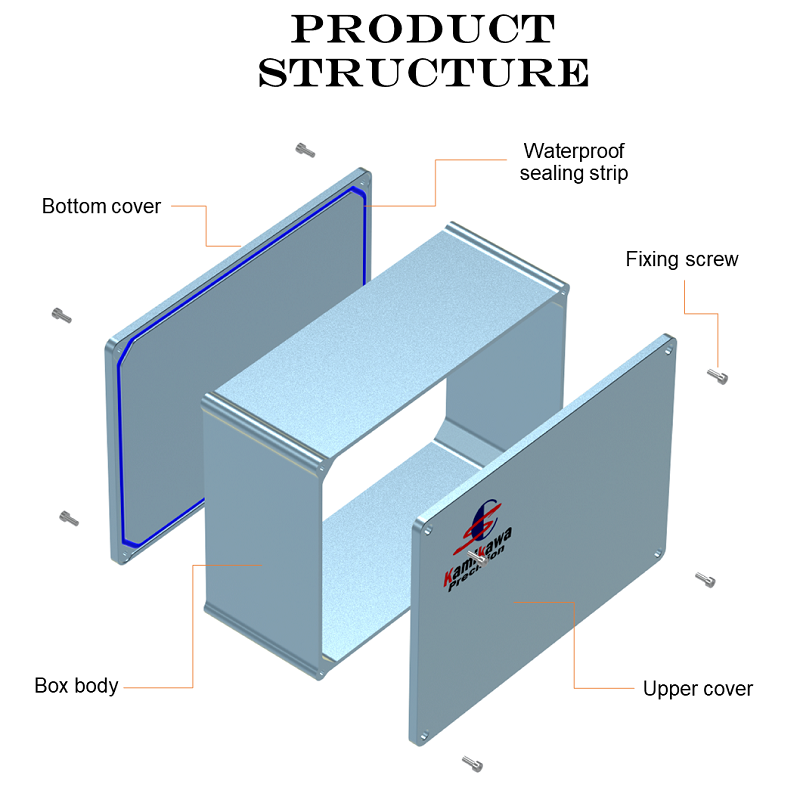

The basic structure of the waterproof box
A general waterproof box consists of an upper cover, a lower cover and a box body. Of course, it can also be designed as a structure in which the bottom cover and the box body are integrated. Different structures have different considerations. For example: considerations in internal assembly; considerations in manufacturing costs, etc. Kamikawa Precision adopts an open structure design waterproof box, which not only facilitates product assembly, but also reduces manufacturing costs, and also achieves the highest waterproof level. That's why Kamikawa Precision Waterproof Cases are popular.
/
/
/
/
/
/
/
/
/
/
/
/

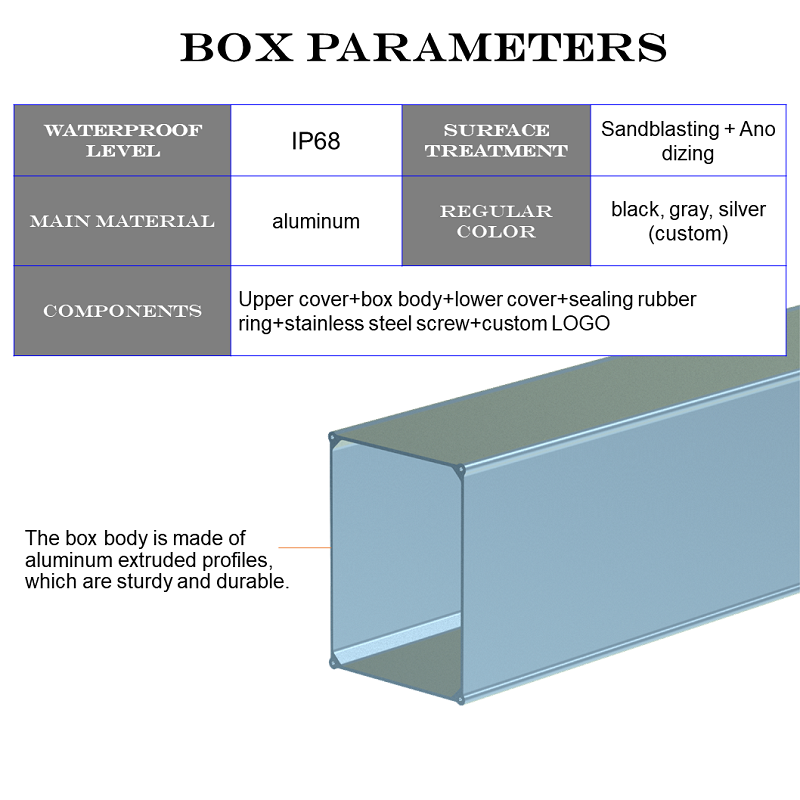

Box parameters

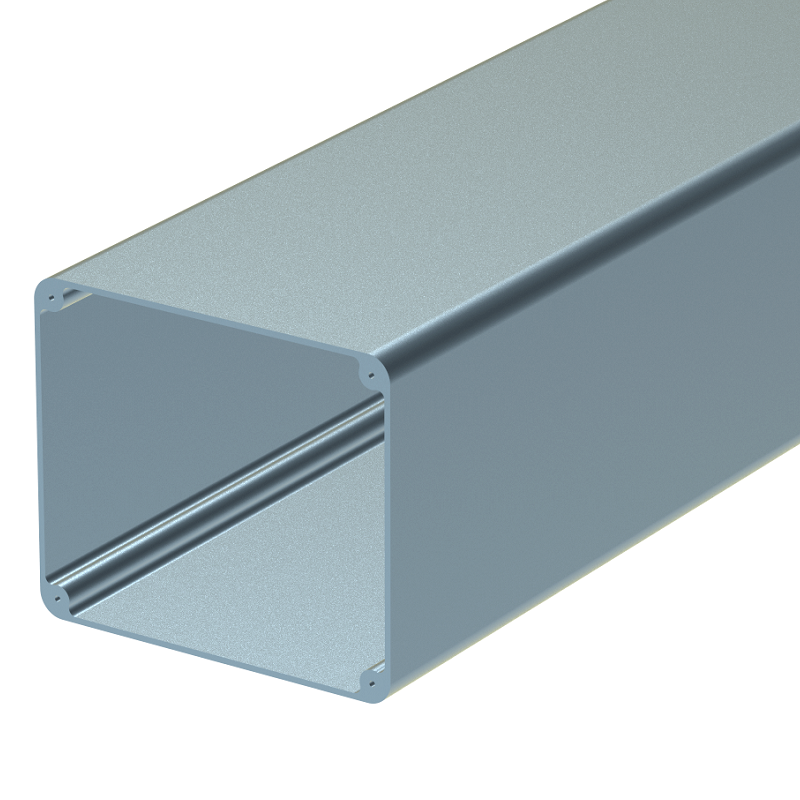

The product is made of all-aluminum, which is not only waterproof and dustproof, but also has a heat dissipation function. Kamikawa precision-manufactured waterproof box, the box body adopts the aluminum extrusion process, and the mold is used for one-time molding; the upper and lower covers are CNC machined, and the dimensional accuracy is high. Surface sandblasting + anodizing treatment. Exquisite appearance, powerful function.
/
/
/
//
/

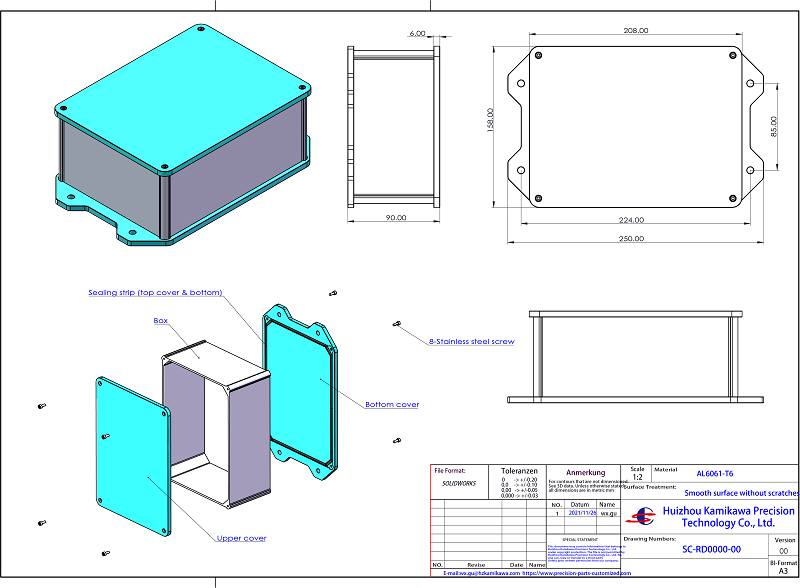

Free Design Drawings

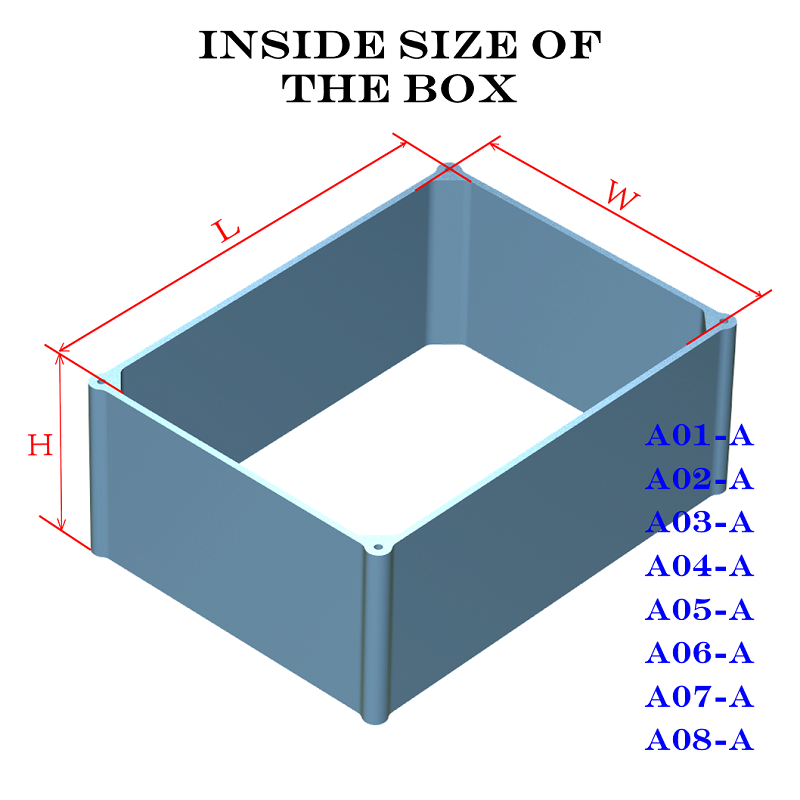

All specifications can be customized, you only need to tell me the internal dimensions: length, width, height, we can provide you with free design structure drawings and cost quotations within 48 hours.

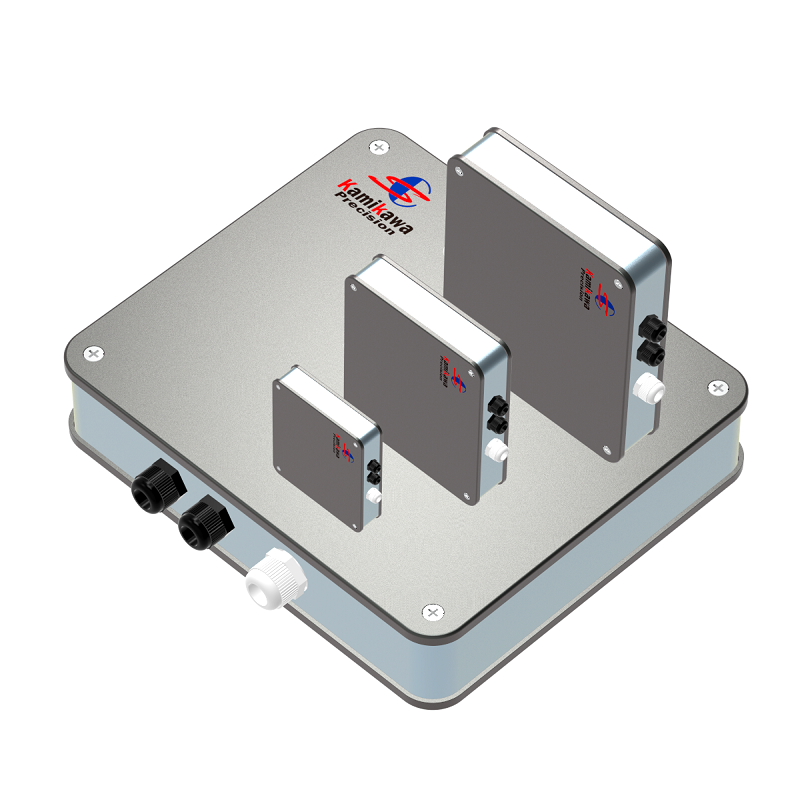

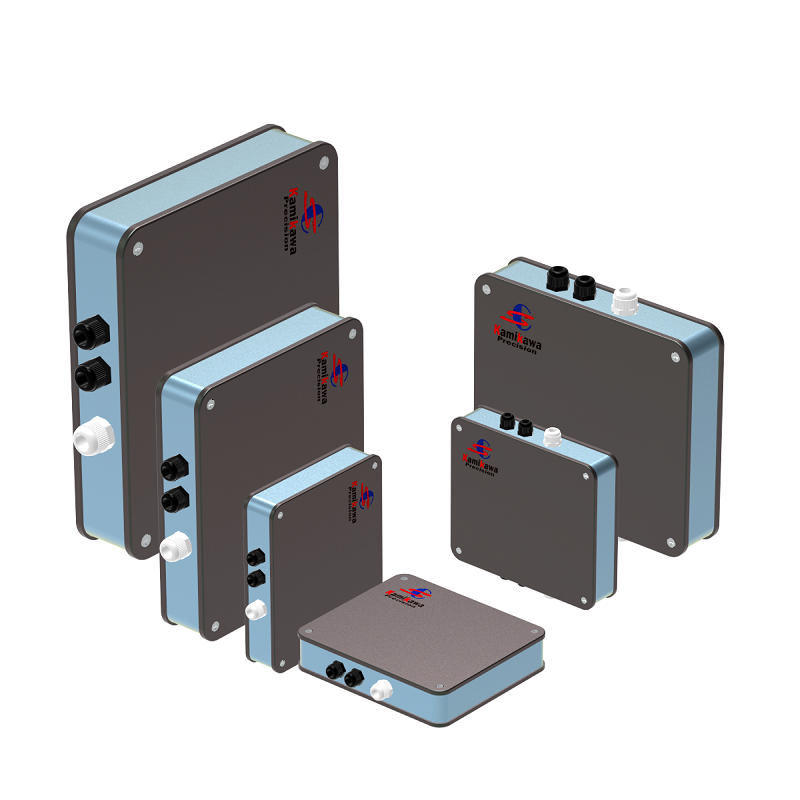

Our waterproof boxes are divided into 8 series, each series has a variety of models to choose from.
/
/
/
/
/
/
/
Product advantages
1、Corner reinforcement design to prevent deformation.

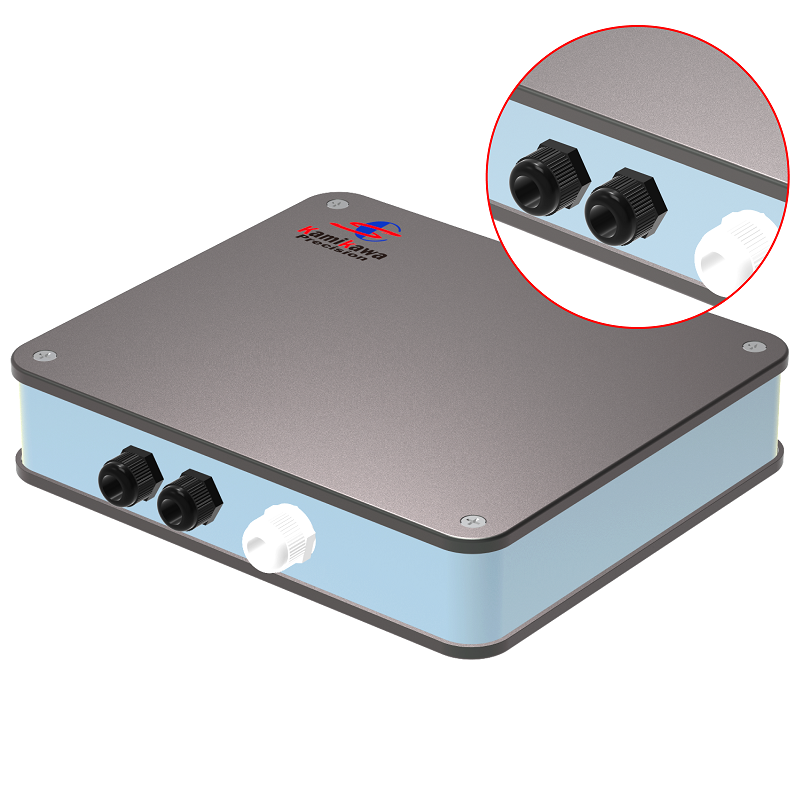

2、The upper and lower cover plates are embedded with sealing rings, which are waterproof and dustproof.
The upper and lower cover plates are provided with hidden sealing strips, which can effectively achieve waterproof and dustproof functions. Waterproof grade up to IP68
/
/
/
/
/
/
/
/
/
/
/

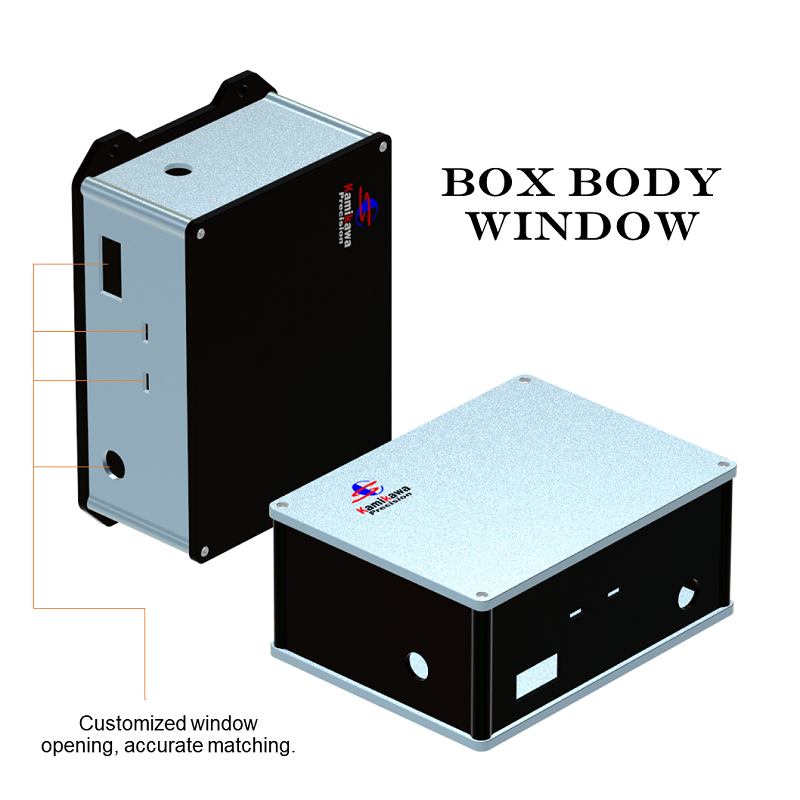

window service
In order to meet the needs of different customers, we can provide you with various window opening services. You only need to provide a sketch or PCB board, and we can determine the location and size of the window for you. Let you save time and worry.
/
/
/
/
/
/
/
LoGo customization
In order to meet the needs of different customers, we can provide you with various laser LOGO or color silk screen LOGO. The product is beautiful and the price is reasonable.
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
Product application field
/
Environmental monitoring；
Mechanical instrument，
Vehicle terminal，
Electronic appliances；
medical equipment；
Rail transit；
Digital communications；
Auto industry；
Industrial interconnection；
Various other fields ......
/
/
/
/
/
/
/
/
/
Product customization process
/
/
Sign the purchase contract make prepayments for products or moulds;
Drawing design Customers provide drawings or PCB boards, and general product design can be completed within two days;
Drawing confirmation Provide 2D drawings for customer confirmation. If the drawings do not meet the requirements, you can continue to revise;
