Customize various specifications in batches Electronic Enclosure

Description FAQ Review

Description

Free Open-Source CAD Drawings For Aluminum Extrusion Enclosure

We provide open-source CAD files for hundreds of aluminum extrusion enclosure profiles. There are no extra mold charges for all standard profiles, with an MOQ of just 1 piece. Available drawing formats: STEP, STL, DXF. All CAD models are fully free for commercial use without copyright restrictions.

Download all drawing files from our GitHub repository: https://github.com/Kamikawa-Enclosure

Step-by-Step Download Guide

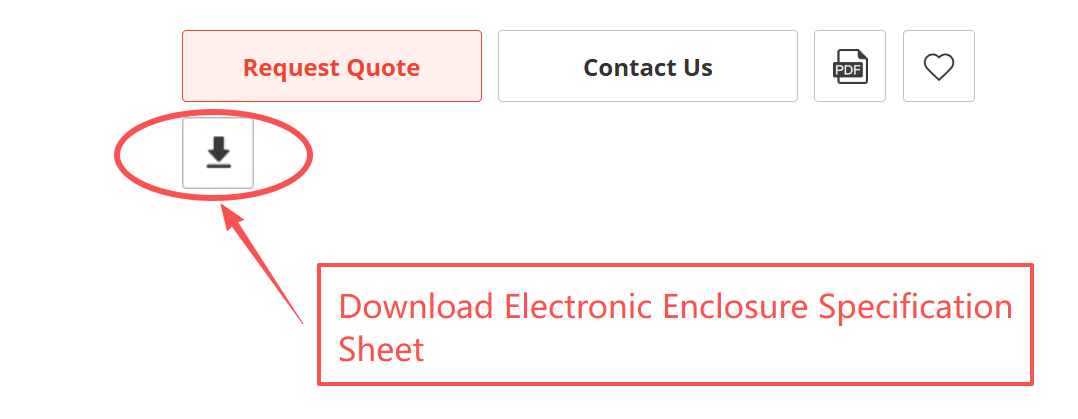

Download our product specification sheet first to find the matching profile model number that fits your PCB width and height.

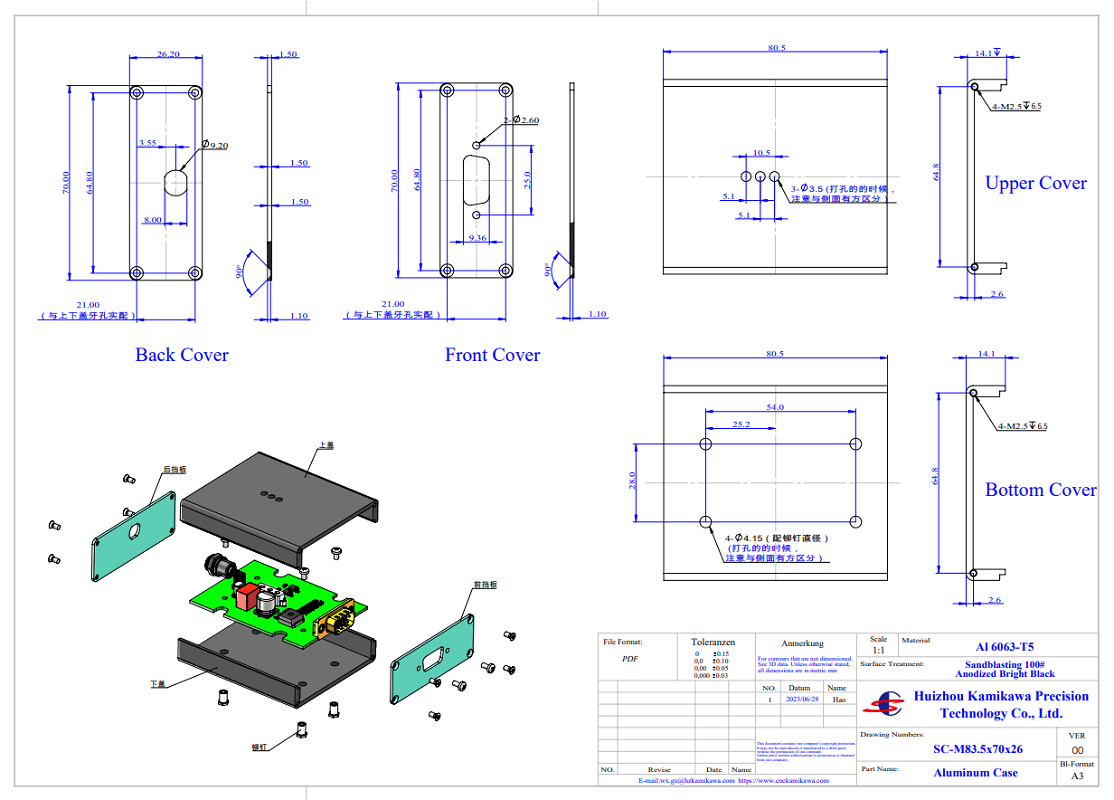

Access the repository and open the 3D-Models folder for 3D files or the CAD-Drawings folder for 2D engineering drawings. Hit the Ctrl+F keyboard shortcut, input your target model number (e.g. K100), and you can instantly locate the required drawing files.
The length of all standard extrusion housings supports unlimited custom lengths. The matched standard end caps are 2.0mm thick flat aluminum plates.
You can independently design customized end cap styles and connector mounting holes. Our engineering team also supplies professional drawing design assistance upon request.
Send your finalized custom drawings to us via email, and we will issue an official quotation and deliver CNC machining service according to your designs.
If none of the standard profiles listed in the specification sheet satisfy your dimensional requirements, we also provide full custom aluminum extrusion enclosure development services.

Aluminium Extrusion Enclosure Specification Sheet

Electronic Enclosure

Product Introduction

The product is made of all-aluminum material, with an open design and extremely convenient assembly;
The upper and lower cover plates are extruded by molds, and the matching accuracy is high;
The baffles on both sides are made of aluminum 5052-H32 material, which is processed by laser cutting;
It can be matched with full-color LOGO to make your products more outstanding;

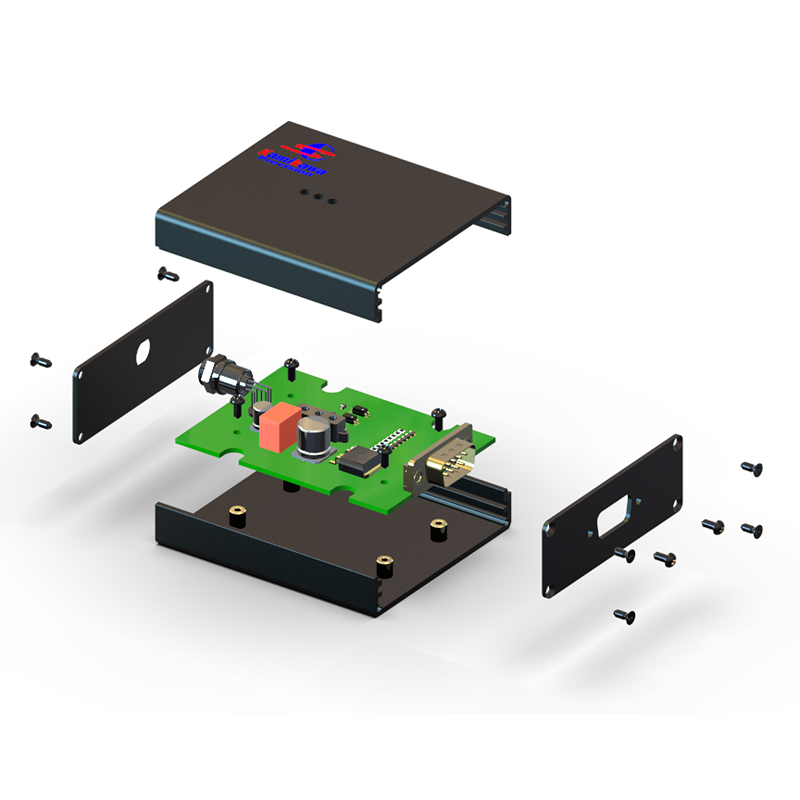

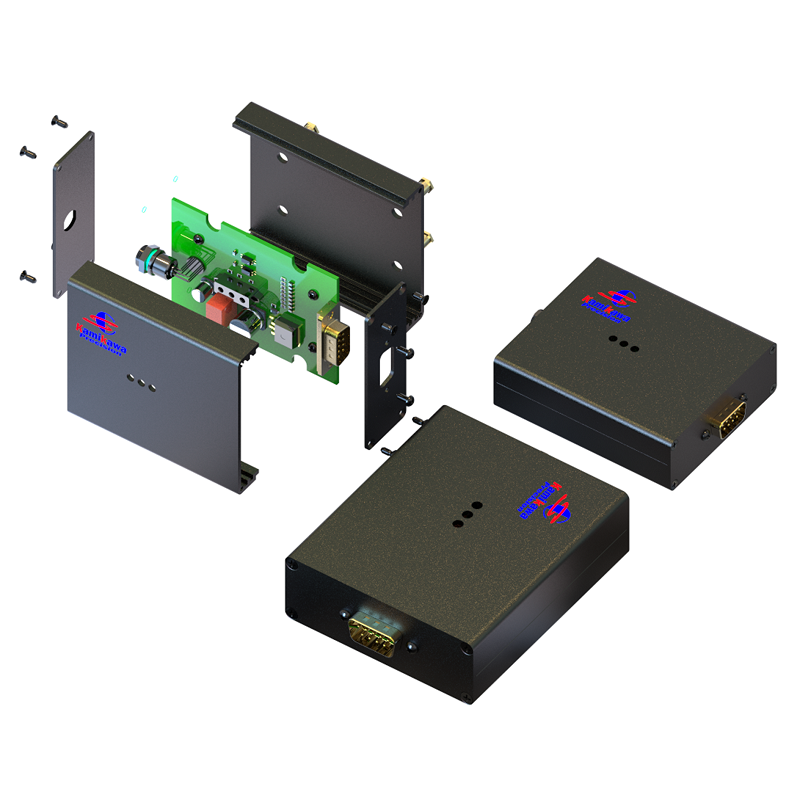

Product Structure

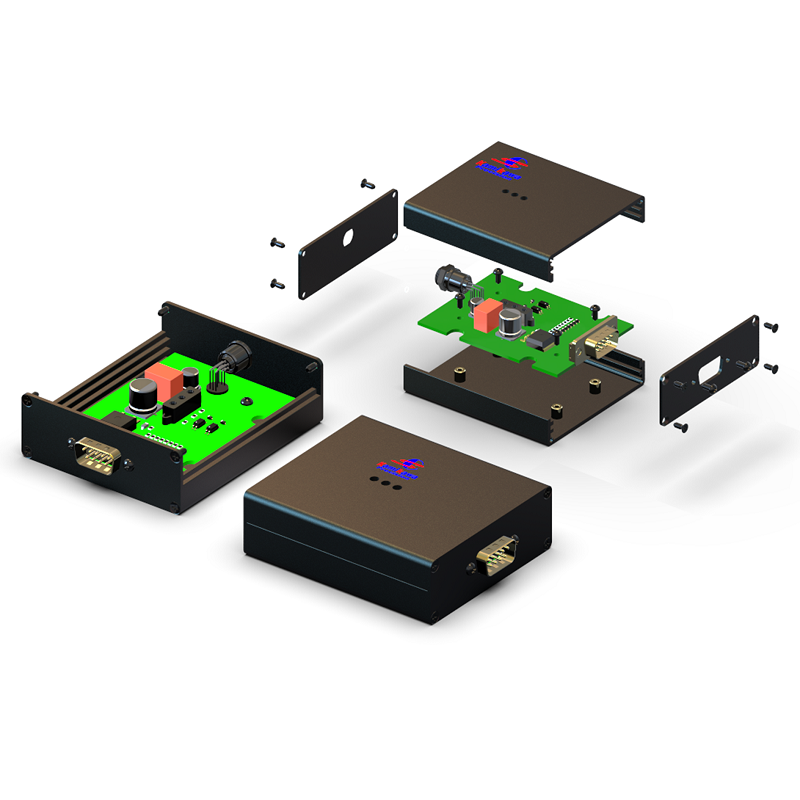

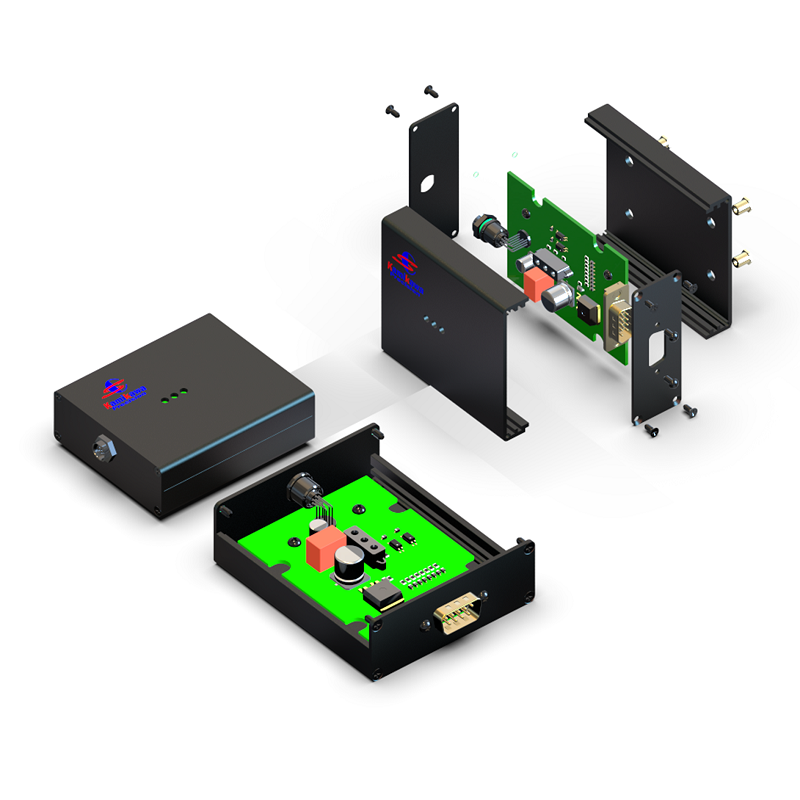

Upper cover;
Bottom cover;
Front baffle;
The rear baffle;
Rivets and installation screws, etc.;

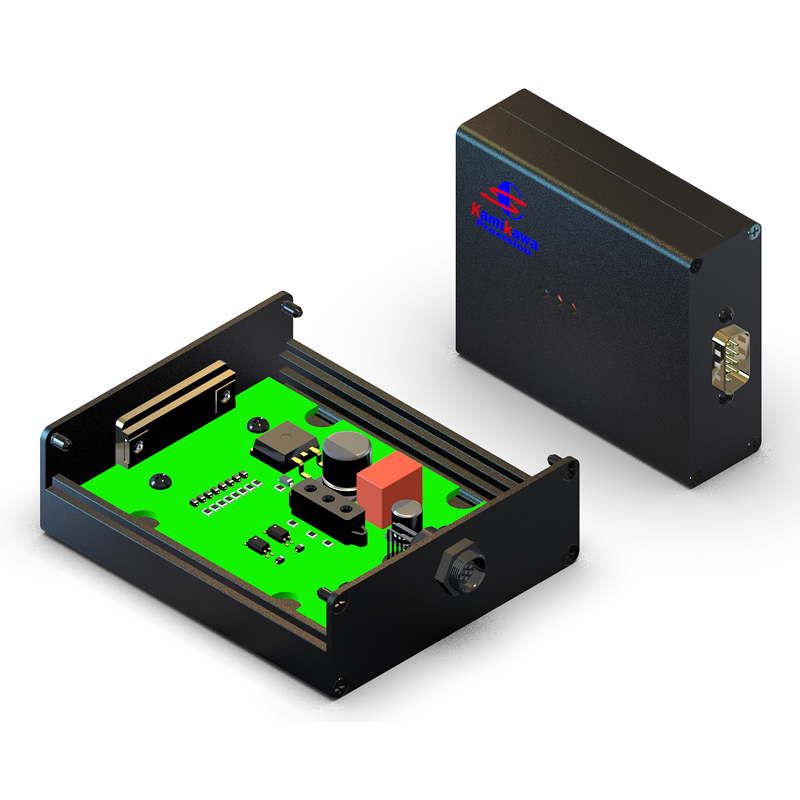

Mounting Hole And PCB Fixing Method

1. The product adopts full CNC machining. The shape and spacing accuracy can reach ±0.01mm;

2. The PCB board is fixed by (brass or stainless steel range-extending studs);

3. All rivets are pressed in by mold, which is stable and reliable;

4. Can design PCB and touch screen installation and fixing methods for customers free of charge;

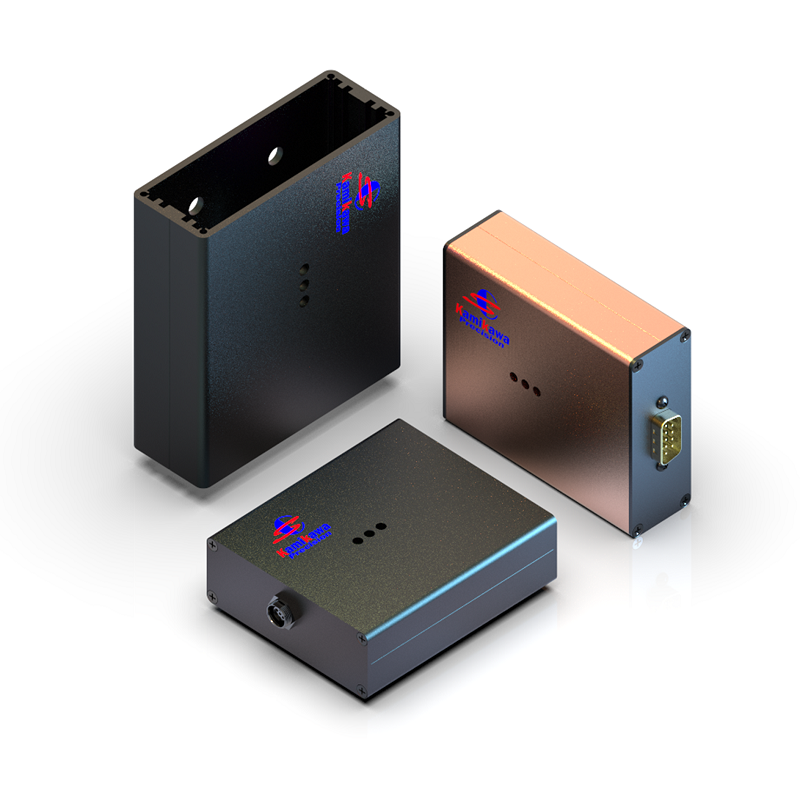

About Product Color

The color of all parts is optional, you only need to provide the Pantone color card number;
The standard configuration is sandblasted matte black or silver white;
LOGO can choose silk screen printing, laser engraving or UV color printing;

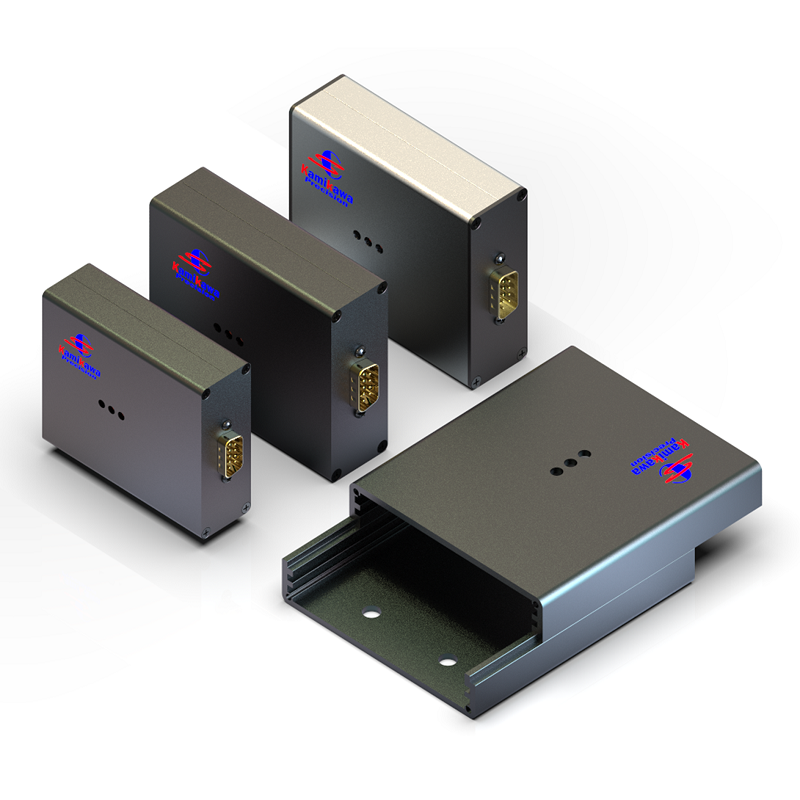

Product Specification

The product has a variety of specifications, and the length, width and height can be customized;
The standard wall thickness of the material is 2.5mm, and any thickness can be customized;
The upper and lower cover plates are made of aluminum: 6063-T5, and the baffle is made of aluminum: 5052-H32 (plastic material can also be selected);
PCB fixing studs are made of brass or stainless steel;
For detailed dimensions, you can download product specifications for free;
