SHCS 1"-8 Alloy Steel Socket Head Screws
/
/
/
/
/
/
/
/
/
/
/ / / / |
Fully Threaded |
With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head. / Black and black-oxide steel screws are mildly corrosion resistant in dry environments. Zinc-plated steel screws resist corrosion in wet environments. Zinc-aluminum-coated steel screws are 40 times as corrosion resistant as zinc-plated screws and comparable to Magni-coated screws. They withstand 1,000 hours of salt spray per ASTM B117. / Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch. / Screws that meet ASTM A574, ASTM A574M, and ISO 898-1 comply with specifications and testing requirements for material quality. Screws that meet ASME B18.3, ASME B18.3.1M, ISO 21269, and ISO 4762 (formerly DIN 912) comply with specifications for dimensional standards. / For technical drawings and 3-D models, click on a part number. |
Partially Threaded | ||
Material | Steel|Stainless Steel|Plastic|Brass|Titanium | SCM435 |Stainless steel | | |
|
Head Type SHCS |
Use a standard 3/4" Allen key |
|
Thread Direction | Right Hand |
/
/
|
|||||||||||||||||||||||

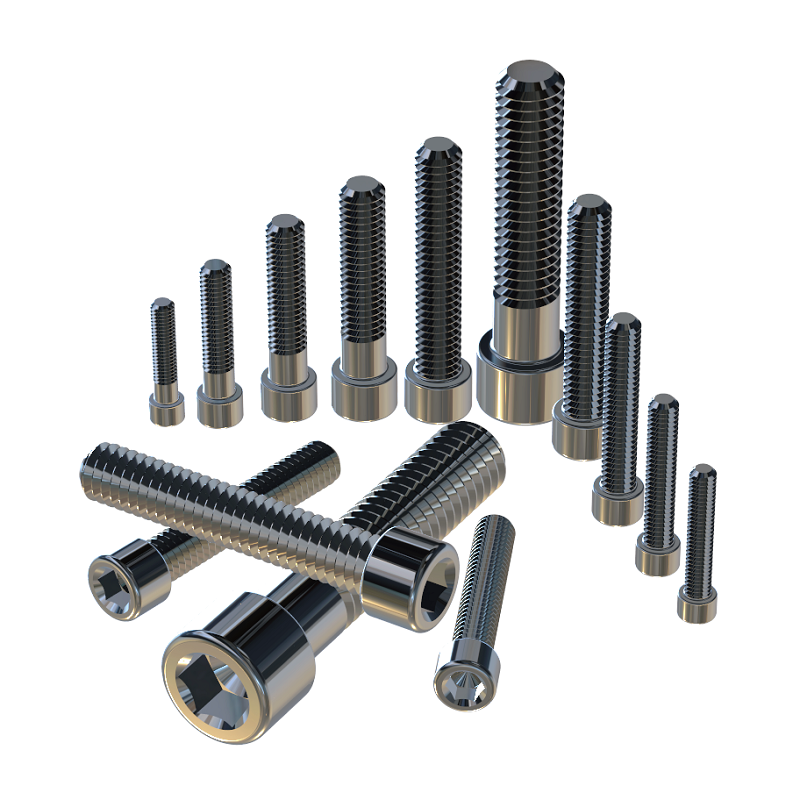

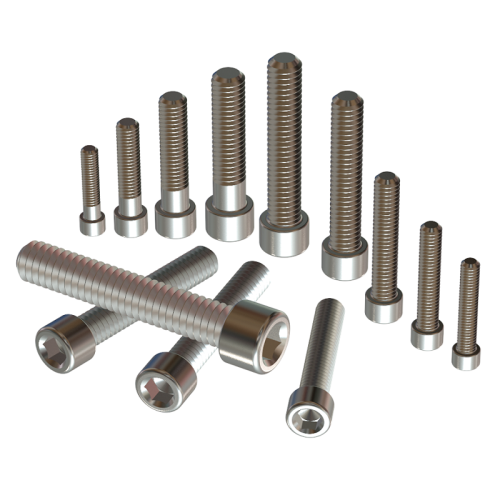

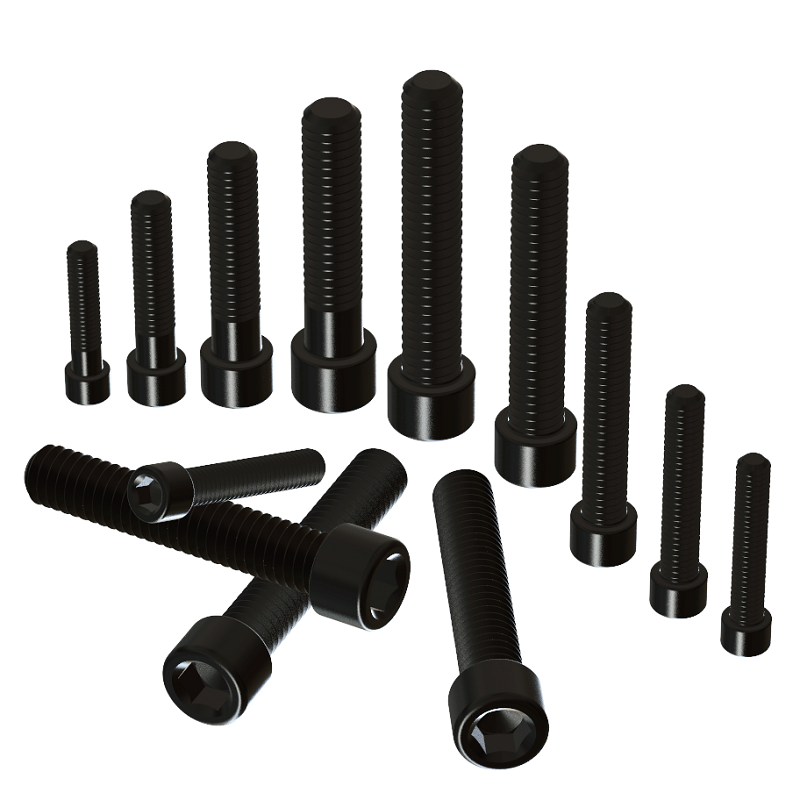

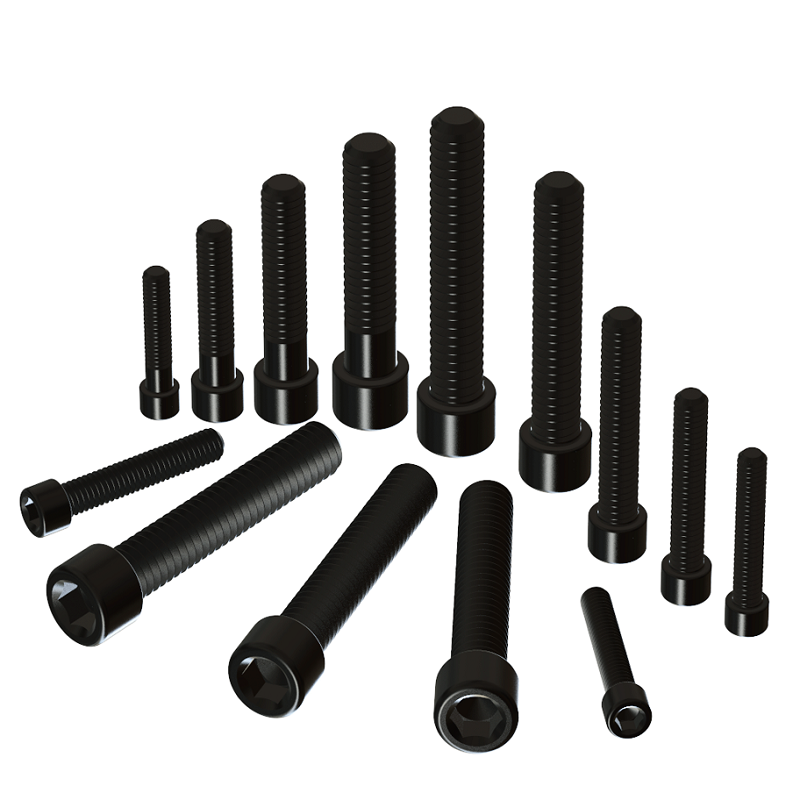

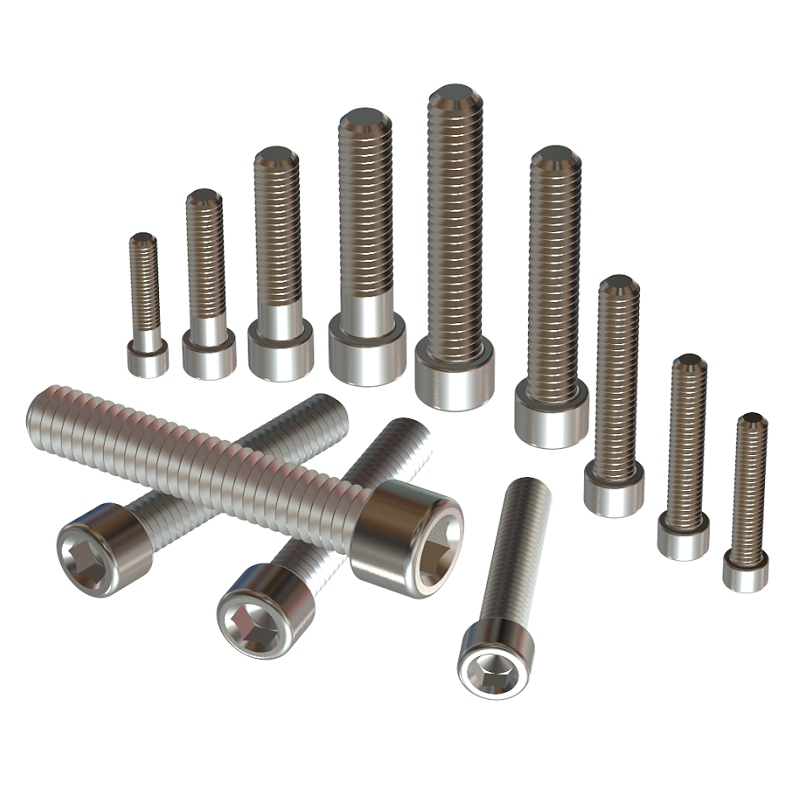

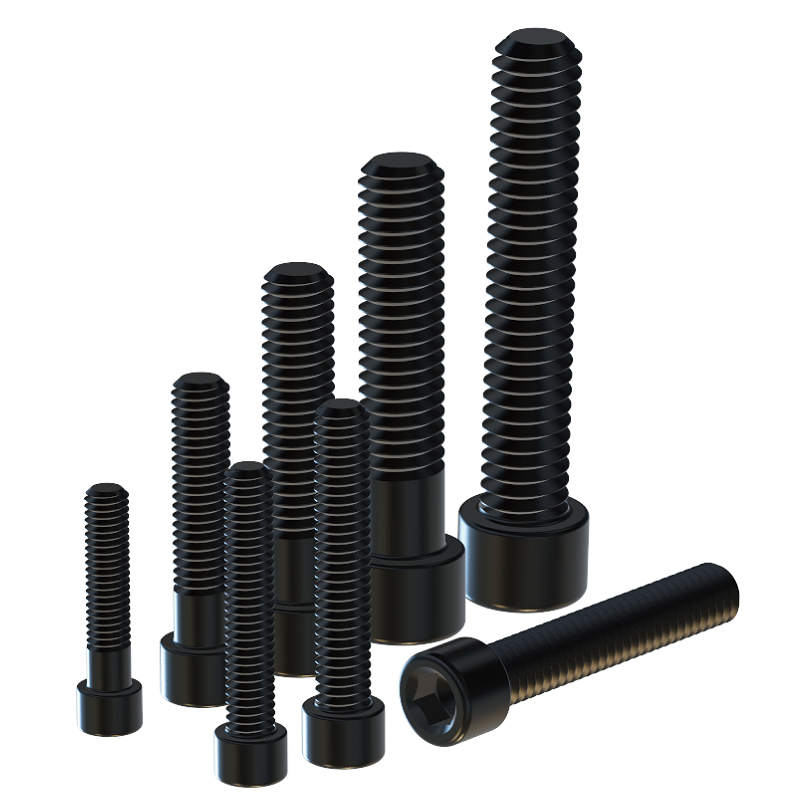

SHCS 1"-8 Black-Oxide Alloy Steel / SHCS 1"-8 Zinc-Plated Alloy Steel / SHCS 1"-8 Zinc-Aluminum Coated Alloy Steel / SHCS 1"-8 Stainless Steel |
|||||||||||||||||||||||
Lg. | Threading | Min. Thread Lg. |
Thread Spacing |
Dia. | Ht. | Drive Size |
Tensile Strength, psi |
Specifications Met |
Pkg. Qty. |
Numbering | Pkg | ||||||||||||
1 1/2" | Fully Threaded | __ | Coarse | 1 1/2" | 1" | 3/4" | 170,000 | ASTM A574 | 10 | 91251A909 | Contact us for a quote | ||||||||||||
1 3/4" | Fully Threaded | __ | Coarse | 1 1/2" | 1" | 3/4" | 170,000 | ASTM A574 | 10 | 91251A911 | Contact us for a quote | ||||||||||||
2" | Fully Threaded | __ | Coarse | 1 1/2" | 1" | 3/4" | 170,000 | ASTM A574 | 10 | 91251A912 | Contact us for a quote |
/
To know more screw specifications, please contact us: wx.gu@hzkamikawa.com
